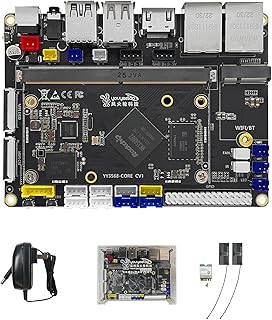

About this item [YY3568 Devkit and YY3568 AI CORE] youyeetoo YY3568 single board computer is for YY3568-Core SOM which power by Rockchip RK3568, A Rockchip quad-core 64-bit Cortex-A55 processor, with brand new ARM v8.2-A architecture, has frequency up to 2.0GHz [Display I/F] YY3568 development board has powerful audio and video processing capabilities, provide HDMI 2.0 ,eDP 1.3 , MIPI-DSI X2 ,Support up 4K@60FPS , Different display on multiple screens. [Rich Extension I/F] YY3568 development board provides up to 5 serial ports, 6 USB, 30Pin GPIO, and PCIE/CAN/I2C/DSI/CSI; to meet various needs. [Network]YY3568 development board onboad Dual Gigabit , support WIFI 5(M.2 module) and 4G LTE. [Development] youyeetoo YY3568 devkit provide open source SDK, Andriod 11 and Debian 10 .At the same time, multiple application tutorials are provided to facilitate customers’ quick verification. [Quick Start] wiki.youyeetoo.com/en/YY3568. Feel free to ask a questions by click “youyeetoo” or mail am2#youyeetoo.com(# >>>@) Product Description Independently developed RK3568 Arm 64bit Quad-core Cortex-A55 Smart Mainboard The YY3568 is a single board computer by youyeetoo based on the Rockchip RK3568 with a core and carrier board design. Featuring up to 2 to 8GB of LPDDR4 memory, 16GB to 64GB of eMMC flash memory, support for SATA and NVMe SSDs, HDMI, MIPI DSI, LVDS and eDP display interfaces, Gigabit Ethernet, and expansion options via M. 2 and PCIe 3.0 sockets. Widely used in IoT gateway, NVR storage, industrial control panel, industrial inspection, industrial control box, karaoke, cloud terminal, car final control and other industry customization market. YY3568 Hardware Specifications SoC Rockchipi RK3568. CPI Quad-Core ARM Cortex-A55，up to 2.0GHz GPU ARM G52 2EE, Support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1; High performance dedicated 2D processor NPU 1TOPS NPU, supports INT4/INT8/INT16 mixed operation RAM 2GB/ 4GB/ 8GB (LPDDR4) Support Custom Storage 16GB/ 32GB/ 64GB EMMC; MircoSD TF Card / M.2 M-Key Camera MIPI-CSI, USB Vedio HDMI, eDP, MIPI-DSIx2, LVDS ; Up tp 4K @ 60Hz Ethernet 10/ 100/ 1000 Mbps Ethernet x2 Other USB2.0x4 , USB3.0x2, UART x5, 30Pin GPIO, CAN , I2C, RTC, 8W SPK, MIC OS Android , Debian, OpenHarmony Power 12 ~ 19V DC Power Input Jack (5.5/2.1 mm) Size 120mm x 88mm x 19mm 4K @ 60fps Decode and 1080p @ 100fps Encode up to 4K @ 60fps Decode and 1080p @ 100fps Encode, the powerful image processing performance of the YY3568 gives it an outstanding performance in image rendering. YY3568 Ecosystem YY3568 Display Camera 4G LTE Module NFC Modules Depth Camera Leverage your time and resources at every stage of the design and development process with our proven and tested hardware kits and board ecosystem. Rapidly prototype and iterate on your designs and remove barriers from the concept-to-product process. Open and complete R&D material Open source. Easy to use. Full range of interfaces. Cost effective. That’s our goal with this product. FAQ Q: Is there R&D support? A: Technical information can be obtained from wiki.youyeetoo.com. Technical communication is available at forum.youyeetoo.com – Q: What interface is the YY3568 core board? A: SODIMM 314P. Core board schematics and backplane reference files are provided to accelerate secondary development. – Q: What kind of power supply does the YY3568 support? A: Two ways. 1. 12 ~ 19V DC Power Input Jack (5.5/2.1 mm). 2. PH-2A 2.54mm 180 Optional Accessories WIFI Module (ASIN:) Features: Material: PCB chipset: For RTL8822CE Network standard: 802.11a/b/g/n/ac+2T2R Frequency: 2.4/5.0GHz Supported Systems: Windows /Linux/ Android Packing List: 1 x Wifi Module 1 x Screw 2 x antennas Camera Module (ASIN:) Features:Interface: MIPI ADC Resolution: 10-bit Pixel Size: 1.12µm x 1.12µm (BSI) Active Pixel Array: 3264 x 2448 Optical Format: 1/4 inch View Angle: 75 degrees Output Format: RGB Data Rate:- MIPI 4-Lane 30fps at full size: 672 Mbps/lane; – MIPI 2-Lane 30fps at full size: 1286.4 Mbps/lane Output Format: Raw Bayer 10-bit/8-bit Max Framerate: 30fps at full size Metal Case (ASIN:B0CB5DSJJJ) Features: 1. Compatible with YY3568 motherboard only 2. This case is constructed out of high quality metal material 3. Design with good heat dissipation, do not have to install the cooling fan or heatsink. 4. Access to all ports of YY3568 dev board. 5. GPIO cable interface is reservered, support to install the gpio cable. 6. Reserve the TF card slot, easy to insert the micro sd card EC25-A 4G Network Card (ASIN:) Features: LTE:LTE-FDD,B2/ B4/ B12 WCDMA:B2/ B4/ B5 Area:North America Operator Certification:AT&T/ T-Mobile/ Rogers/ Telus Mandatory/conformity certification:FCC/ IC/ PTCRB Other certifications:WHQL Shipping List: 1x EC25; 1x 4G Antenna; 1x Mini PCIe Adapter Standard kit Standard kit WIFI Bundle WIFI Bundle WIFI + Metal Case Bundle WIFI + Metal Case Bundle Add to Cart Add to Cart Add to Cart Buying Options Add to Cart Add to Cart Customer Reviews — — 3.0 out of 5 stars 1 — — — Price $62.90 $62 . 90 $72.90 $72 . 90 $68.90 $68 . 90 — $76.90 $76 . 90 $86.90 $86 . 90 12V DC Power ✓ ✓ ✓ ✓ ✓ ✓ Acrylic case ✓ ✓ WIFI/BT ✓ ✓ ✓ ✓ Metal Case ✓ ✓ Product information Technical Details Collapse all Summary RAM LPDDR4 Wireless Type 802.11b Other Technical Details Brand youyeetoo Operating System Android,Linux Item Weight 1.1 pounds Package Dimensions 5.91 x 5.91 x 1.97 inches Number of Processors 4 Manufacturer youyeetoo ASIN B0C39ZWMBZ Country of Origin China Date First Available April 23, 2023 Additional Information Customer Reviews 3.0 3.0 out of 5 stars 1 rating 3.0 out of 5 stars Best Sellers Rank #11,469 in Single Board Computers (Computers & Accessories) Warranty & Support Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is “dead on arrival,” arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test “dead on arrival” returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
