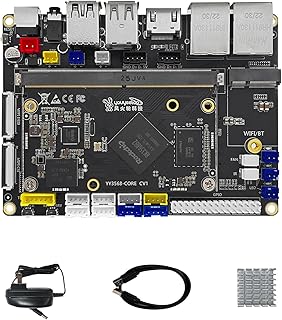

About this item YY3568 is a high-performance, low-power consumption motherboard based on Rockchip RK3568, supporting Debian 11 and Android systems, with features such as 6 USB interfaces, SATA 3.0, PCIe 3.0 interfaces, and support for 4K@60Hz video output. It is suitable for fields such as NAS and research and development. Online Wiki and Forum Support : We provide direct and effective support to our customers through the creation of a wiki and community. Through our community, you can learn about and give feedback on our products. We believe that “Talk is cheap. Show me the code.” is the best annotation. Link: wiki.youyeetoo.com, forum.youyeetoo.com Hardware Interface : Equipped with interfaces such as – WIFI & BT via M.2 E-Key PCIe 2.0 – eDP x1, MIPI-CSIx1,MIPI DSI x1, HDMI 2.0 x1 – USB 3.0 x2, USB 2.0 x2 (Type-A), OTG, USB 2.0 x2 (PIN)- 30PIN GPIO, UART x5, I2C x2, ADC x4, CAN x1, MIC x1, RTC. The YY3568 motherboard adopts a design scheme of core board and carrier board. The core board and carrier board are separate designs, and different core boards and carrier boards can be selected and combined according to needs, which has high flexibility. In addition, the core board and carrier board can be maintained and upgraded independently without affecting the entire system. By replacing the carrier board, it is easy to achieve system function expansion and upgrade. Quick Start : http(s)://wiki.youyeetoo.com/en/YY3568. Feel free to ask a questions by click “youyeetoo” or mail am2#youyeetoo.com(# >>>@) Product Description Independently developed RK3568 Arm 64bit Quad-core Cortex-A55 Smart Mainboard The YY3568 is a single board computer by youyeetoo based on the Rockchip RK3568 with a core and carrier board design. Featuring up to 2 to 8GB of LPDDR4 memory, 16GB to 64GB of eMMC flash memory, support for SATA and NVMe SSDs, HDMI, MIPI DSI, LVDS and eDP display interfaces, Gigabit Ethernet, and expansion options via M. 2 and PCIe 3.0 sockets. Widely used in IoT gateway, NVR storage, industrial control panel, industrial inspection, industrial control box, karaoke, cloud terminal, car final control and other industry customization market. YY3568 Hardware Specifications SoC Rockchipi RK3568. CPI Quad-Core ARM Cortex-A55，up to 2.0GHz GPU ARM G52 2EE, Support OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1; High performance dedicated 2D processor NPU 1TOPS NPU, supports INT4/INT8/INT16 mixed operation RAM 2GB/ 4GB/ 8GB (LPDDR4) Support Custom Storage 16GB/ 32GB/ 64GB EMMC; MircoSD TF Card / M.2 M-Key Camera MIPI-CSI, USB Vedio HDMI, eDP, MIPI-DSIx2, LVDS ; Up tp 4K @ 60Hz Ethernet 10/ 100/ 1000 Mbps Ethernet x2 Other USB2.0x4 , USB3.0x2, UART x5, 30Pin GPIO, CAN , I2C, RTC, 8W SPK, MIC OS Android , Debian, OpenHarmony Power 12 ~ 19V DC Power Input Jack (5.5/2.1 mm) Size 120mm x 88mm x 19mm 4K @ 60fps Decode and 1080p @ 100fps Encode up to 4K @ 60fps Decode and 1080p @ 100fps Encode, the powerful image processing performance of the YY3568 gives it an outstanding performance in image rendering. YY3568 Ecosystem YY3568 Display Camera 4G LTE Module NFC Modules Depth Camera Leverage your time and resources at every stage of the design and development process with our proven and tested hardware kits and board ecosystem. Rapidly prototype and iterate on your designs and remove barriers from the concept-to-product process. Open and complete R&D material Open source. Easy to use. Full range of interfaces. Cost effective. That’s our goal with this product. FAQ Q: Is there R&D support? A: Technical information can be obtained from wiki.youyeetoo.com. Technical communication is available at forum.youyeetoo.com – Q: What interface is the YY3568 core board? A: SODIMM 314P. Core board schematics and backplane reference files are provided to accelerate secondary development. – Q: What kind of power supply does the YY3568 support? A: Two ways. 1. 12 ~ 19V DC Power Input Jack (5.5/2.1 mm). 2. PH-2A 2.54mm 180 Optional Accessories WIFI Module (ASIN:) Features: Material: PCB chipset: For RTL8822CE Network standard: 802.11a/b/g/n/ac+2T2R Frequency: 2.4/5.0GHz Supported Systems: Windows /Linux/ Android Packing List: 1 x Wifi Module 1 x Screw 2 x antennas Camera Module (ASIN:) Features:Interface: MIPI ADC Resolution: 10-bit Pixel Size: 1.12µm x 1.12µm (BSI) Active Pixel Array: 3264 x 2448 Optical Format: 1/4 inch View Angle: 75 degrees Output Format: RGB Data Rate:- MIPI 4-Lane 30fps at full size: 672 Mbps/lane; – MIPI 2-Lane 30fps at full size: 1286.4 Mbps/lane Output Format: Raw Bayer 10-bit/8-bit Max Framerate: 30fps at full size Metal Case (ASIN:B0CB5DSJJJ) Features: 1. Compatible with YY3568 motherboard only 2. This case is constructed out of high quality metal material 3. Design with good heat dissipation, do not have to install the cooling fan or heatsink. 4. Access to all ports of YY3568 dev board. 5. GPIO cable interface is reservered, support to install the gpio cable. 6. Reserve the TF card slot, easy to insert the micro sd card EC25-A 4G Network Card (ASIN:) Features: LTE:LTE-FDD,B2/ B4/ B12 WCDMA:B2/ B4/ B5 Area:North America Operator Certification:AT&T/ T-Mobile/ Rogers/ Telus Mandatory/conformity certification:FCC/ IC/ PTCRB Other certifications:WHQL Shipping List: 1x EC25; 1x 4G Antenna; 1x Mini PCIe Adapter Standard kit Standard kit WIFI Bundle WIFI Bundle WIFI + Metal Case Bundle WIFI + Metal Case Bundle Add to Cart Add to Cart Add to Cart Buying Options Add to Cart Add to Cart Customer Reviews — — 3.0 out of 5 stars 1 — — — Price $62.90 $62 . 90 $72.90 $72 . 90 $68.90 $68 . 90 — $76.90 $76 . 90 $86.90 $86 . 90 12V DC Power ✓ ✓ ✓ ✓ ✓ ✓ Acrylic case ✓ ✓ WIFI/BT ✓ ✓ ✓ ✓ Metal Case ✓ ✓ Product information Manufacturer youyeetoo ASIN B0CCSN555T Country of Origin China Date First Available July 25, 2023 Warranty & Support Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
