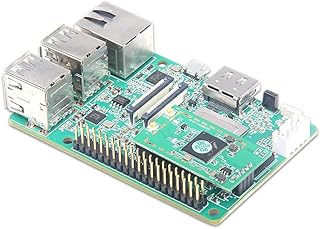

XPI-3288 Android Single Board Computer Development Board Moudle, Rockchip RK3288 Quad Core CPU 2G RAM, 16GB EMMC Flash Motherboard

About this item Card-sized High Performance Board, Rockchip RK3288 with Quad-core Cortex-A17 up to 1.6GHz, 2G RAM, 16GB eMMc flash, faster read / write speeds for the OS, applications and file storage 4*USB2.0, 1*HDMI Out, 1*Micro USB, 1*UART, 1*GPIO interface, WiFi and 1000M LAN interface, Micro SD card (TF card : Max64G) Multiple DIY use Single Board Computer, use the Form Factor of Raspberry Pi, DIY Friendly Design: 40 Pin GPIO header with I2S, I2C, SPI, UART, etc According to the definition of Raspberry Pi, which is suitable for the field of programming education for teenagers Compatibility and Extensibility: 40 Pin header enables hardware re-use by maintaining compatible alternate pin functions like I2S, I2C, SPI, UART, and so on Product Description Specifications of Geniatech XPI-3288 : 1. Chipset: Rockchip RK3288 Software: Android 7.1 2. Processor: CPU: Quad-core Cortex-A17 up to 1.6GHz 3. GPU: Mali-T764 DDR: 2GB EMMC FLASH: 16GB 4. Network: Ethernet: RJ45, 1000M WiFi: 2.4G/5G Dual Band Bluetooth: BT4.0 5. Interface: TF Card Slot: TF card *1(max. 64GB) HDMI out*1, USB Host 2.0*4 MicroUSB: Power IN*1 GPIO: GPIO*28 6. Codec: Video: MPEG-1: up to MP:1080p@60fps (1920×1080) MPEG-2: up to MP : 1080p@60fps (1920×1080) MPEG-4: up to ASP level 5 : 1080p@60fps (1920×1080) GMC(global motion compensation)not supported H.263: 576p@60fps(720×576) H.264: up to HP level 5.1 : 2160p@24fps (3840×2160) image cropping not supported AVS: 1080p@60fps (1920×1080) 4:4:4 sampling not supported VC-1: up to AP level 3 : 1080p@30fps (1920×1080) VP8: 1080p@60fps (1920×1080) MVC: 1080p@60fps (1920×1080) Audio: Supports MP3, AAC, WMA Photo: jpeg, jpg,png 7. Dimensions: 85 mm * 56 mm 8. Operating Temp: 0°C to 70°C 9. Adapter: DC5V / 3A, Accessory: Power Adapter Product information Package Dimensions 3.34 x 2.2 x 0.59 inches Item Weight 7 ounces Manufacturer Geniatech ASIN B09TD9HDK8 Country of Origin China Item model number XPI-3288 Customer Reviews 1.0 1.0 out of 5 stars 1 rating 1.0 out of 5 stars Best Sellers Rank #12,721 in Single Board Computers (Computers & Accessories) Date First Available March 3, 2021 Warranty & Support Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
