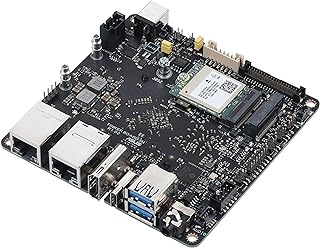

WayPonDEV Tinker Board 3N Rockchip RK3568 Processor LPDDR4 Single Board Computers Support Debian/Android/Yocto,WIFI6 and PoE (3N)

About this item [High-performance processors] Powered by a 64-bit Rockchip RK3568, which combines a quad-core Arm Cortex-A55 CPU and Arm Mali-G52 GPU [Operating Systems]Tinker Board 3N Single Board Computer supports Linux Debian, Yocto or Android and firmware over the air (FOTA) updates. [Compact in Size] 4×4 inches dimension, easy to integrate, with USB3.0/2.0 standard output interface, providing users with a high degree of flexibility [Enhanced Connectivity] Tinker board 3N Dev board supports up to 8GB of dual-channel LPDDR4X memory and up to 64GB of eMMC storage,and dual LAN ports, HDMI, LVDS, eDP, USB 3.2, USB 2.0, Wi-Fi 5/6, and 4G/5G modules. [Wide Application] Tinker Board 3N series is perfectly suited for industrial automation and smart factory environments. It fulfills the need for real-time communication, frictionless integration, long-term operation, and stringent revision control, making it an ideal choice for fulfilling the demands of versatile applications in these settings. [Pack List] 1x Tinker Board 3N/3N PLUS SBC with 4GB RAM+32GeMMC Product Description Tinker board 3N RK3568 SBC OPTIMIZED THERMAL DESIGN Tinker Board 3N features an advanced thermal design including a low-profile pushpin heatsink and SoC placement on the back side for added strength and ease of installation, with its diminutive NUC-scale dimensions allowing for SWaP-constrained space deployment and flexible system integration.. With reduced thermal throttling, developers can push the limits of performance without compromising stability. It is also engineered to operate smoothly in harsh industrial environments, with an impressive operating-temperature range of -40 to 85°C — making it ideal for everything from outdoor use to hectic factory environments. MULTIPLE DISPLAYS SUPPORTED With LVDS support and dual-channel Full HD and eDP output, Tinker Board 3N enables seamless integration into a wide range of display systems and thus saves much project deployment time and effort ENHANCED CONNECTIVITY Tinker Board 3N offers versatile connectivity options, ensuring superior system expandability for a wide range of applications. With interfaces such as PoE, LVDS, eDP, COM and CAN bus, this versatile SBC provides ample opportunities for seamless integration into various industrial and automation systems. Whether it’s factory controllers, robotic arms or alarm settings, Tinker Board 3N is ready for the task at hand. Tinker Board 3N is also engineered with M.2 E and M.2 B slots, allowing for the addition of Wi-Fi or 4G/5G expansion modules. These expansion slots enable seamless integration of connectivity options, expanding the board’s capabilities — and ensure seamless wireless and cloud connectivity, reducing latency for real-time applications in smart factories and other IoT environments. The embedded COM headers and CAN bus functionality further enhance the board’s versatility, enabling it to meet the demands of diverse applications. ASUS Industrial Android and Linux FOTA Tinker Board 3N supports firmware over-the-air (FOTA) roll-out, enabling embedded systems developers using the board to be updated remotely with the mainstream and latest Android and Linux* firmware, operating system and drivers. Worldwide content-delivery network Easy deployment and maintenance FOTA progress report SPECIFICATIONS SoC Rockchip RK3568 CPU Quad-core Arm Cortex-A55 GPU Arm Mali-G52 Display 1 x HDMI with CEC hardware ready 1 x LVDS (Dual-link) 1 x eDP Memory Size Dual-CH LPDDR4/LPDDR4X 2GB / 4GB / 8GB Storage none / 32GB / 64GB eMMC Micro SD(TF) card slot (push/pull) SPI Flash 16MB M.2 E key 2230​ 1 x for Wi-Fi 5/6 & BT module (PCIe 2.0 x1, USB 2.0)​ M.2 B key 3042/3052​ 1 x for 4G/5G or SSD module (PCIe 3.0 x1, USB 3.0, USB 2.0, SIM) SIM Slot x1 Audio 1 x 3.5 Phone Jack (w/ Mic) 1 x Speaker Stereo Pin Header (4ohm, 3W each) 1 x HDMI audio USB 1 x USB 3.2 Gen1 Type-C OTG port 2 x USB 3.2 Gen1 Type-A ports 2 x USB 2.0 Pin header Internal Headers 1 x 40-pin LVDS + eDP connector 1 x 5V Panel Backlight & Control header 1 x IR Receiver header 1 x 14-pin GPIO headers includes: – 1 x GND – 1 x I2C bus – 1 up to 2 x UART – up to 1 x SPI bus (2 select) – up to 1 x SPDIF – up to 4 x PWM – 2 x ADC (8 bit) 1 x 2-pin Recovery header 1 x 4-pin Power-on & Reset header 1 x 3-pin Debug UART header 1 x 4-pin DC Fan header 1 x 2-pin RTC Battery header OS Support Debian 11 / Android 12 Dimension 4 x 4 inches / 100 x 100 mm Operation temperature 3N/3N Plus 0℃ ~ 60℃/-40℃ ~ 85℃ Note Default for 1 x 802.11 a/b/g/n/ac wireless & BT 5.0 (2T2R) Product information Product Dimensions 3.93 x 3.93 x 0.43 inches Item Weight 1.6 ounces Manufacturer Youyeetoo ASIN B0CN8D1G7V Item model number Tinker board 3N Best Sellers Rank #6,968 in Single Board Computers (Computers & Accessories) Date First Available November 15, 2023 Warranty & Support Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
