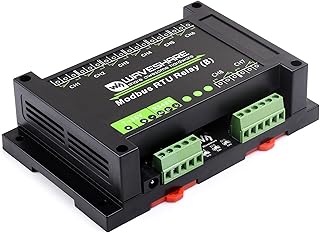

waveshare Industrial Modbus RTU 8-ch Relay Module with RS485 Interface Multi Isolation Protection Circuits, 7~36V Power Supply, Support Win7/8/8.1/10/11,Linux, Android,etc.

About this item RS485 Communication: Configurable device address (1~255), multi devices can be cascaded on RS485 bus. Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal. Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit. Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability. Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection. High quality relay, contact rating: ≤10A 250VAC/30VDC Product information Contact Type Normally Open Current Rating 10 Amps Brand waveshare Operation Mode Automatic Coil Voltage 36 Volts Maximum Switching Current 10 Amps Package Dimensions 4 x 3 x 1.5 inches Item Weight 2.4 ounces Manufacturer Waveshare ASIN B0CLS9NGCB Best Sellers Rank #12,557 in Single Board Computers (Computers & Accessories) Date First Available October 25, 2023 Warranty & Support Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
