Thermal Pad PTM7950 100x160x0.2mm 8.5W/mK Heatsink Phase Change Silicone Grease CPU GPU SSD thermal pad

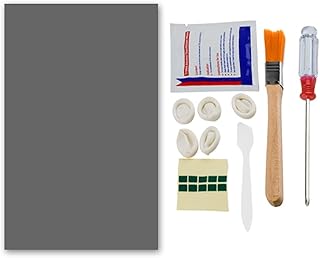

Thermal Pad PTM7950 Size 100x160x0.2mmmm, Phase change at 45°C, Thermal Pad Conductivity: 8.5W/mK PTM7950 Thermal Pad is a highly thermal Conductivity Phase Change Material (PCM) that lasts longer and is more effective than tradiational thermal Pad. PTM7950 Thermal Pad is a proprietary material that provides superior reliability (pass 150˚C baking 1000 hours, T/C-B 1000 cycles) and maintains low thermal impedance (<0.04˚Ccm2/W @ no shim), making the PTM7950 thermal pad a good choice for high performance integrated circuit devices. PTM7950Thermal Pad, based on a novel polymer PCM system, exhibits excellent interface wetability during typical operating temperature ranges, resulting in extremely low surface contact resistance Package include: 1x Thermal Pad 100x160x0.2mm, 1x Phillips Screwdriver, 1x Cleaning Wipe, 1x Spatula, Finger gloves, 1x Cleaning Brush Product Description PTM7950, a high thermal conductive Phase Change Material (PCM) in pad format, was designed to minimize thermal resistance at interfaces and has the great excellent long term reliability. Based on a novel polymer PCM system, this material exhibits excellent wetting at interfaces during typical operating temperature range, resulting in very low surface contact resistance. A proprietary filler material provides high thermal conductivity 8.5W/m ·K and a low thermal impedance (<0.04˚C cm²/W), suitable for high performance IC devices. how the PTM7950 thermal pad works ? At room temperature, thermal conductive phase change materials remain solid and cannot discharge air from the interface (Picture 1) As the temperature increases, the phase change thermal conductive material becomes softer and the air at the interface begins to be discharged, and the temperature also begins to decrease (Picture 2) When the phase change thermal conductive material reaches the phase change temperature(45°C), it becomes liquid and can greatly wet the interface, discharge the air inside the interface, reduce the interface thermal resistance, and transfer heat as much as possible; When the device is in a non working state, the phase change thermal conductive material becomes solid again, but maintains 100% complete wetting of the interface (Picture 3) Easy to use, Noted: thermal pad is gray, the protective film may be clear or blue, so it is normal if looks gray or blue Widely Application 8.5W/mK high heat dissipation performance.Effectively improve the performance of notebook computers, cpu, ssd, gpu game consoles or other integrated circuit chips. FAQ: Q: Why did I receive it in blue, picture is gray? A: the thermal pad is gray, but protective film is blue or clear, please remove the film before using Q: Can it be used together with silicone grease? A: No, it needs to be used separately to replace silicone grease Q: Can it be used in multiple layers? A: No, it can only be used in a single layer. The standard thickness for applying silicone grease is 0.2mm. If it is too thick, it will affect the heat dissipation effect Q: Why is the cooling effect not obvious when used on desktop computer at the beginning? A: it is phase change thermal pad, when the thermal pad becames liquid in high temperature, it will have good heat dissipation, you can use the computer in high termperature 2-3hours and repeat many times to discharge air, the effect will be better. Q: How durable is the 7950? A: On mobile core gaming laptops, durability is very outstanding, and there will be no significant attenuation after one year of high intensity use (except for dust blockage and defects in the computer's own heat sink) Q: How long can the 7950 be stored? A: Sealed , avoid light, 2 year PTM7950 Thermal Pad PTM7950 Thermal Pad PTM7950 Thermal Pad M.2 SSD Heatsink M.2 themal pad 4Pack PTM7950 Thermal Pad Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.6 out of 5 stars 351 4.3 out of 5 stars 101 4.2 out of 5 stars 10 4.4 out of 5 stars 113 4.3 out of 5 stars 113 4.6 out of 5 stars 44 Price $16.99 $16 . 99 $24.99 $24 . 99 $37.99 $37 . 99 $9.99 $9 . 99 $9.99 $9 . 99 $8.99 $8 . 99 80*40*0.2mm 80*80*0.2mm 100*160*0.2mm 70*20*2mm 120x20mm thermal pad 31*50*0.2mm Product information Package Dimensions 7.87 x 5.08 x 1.06 inches Item Weight 2.89 ounces Manufacturer JOYJOM ASIN B0BX45ZS8H Item model number 100x160x0.2mm Customer Reviews 4.2 4.2 out of 5 stars 10 ratings 4.2 out of 5 stars Best Sellers Rank #93 in Thermal Pads Date First Available February 28, 2023 Warranty & Support Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
