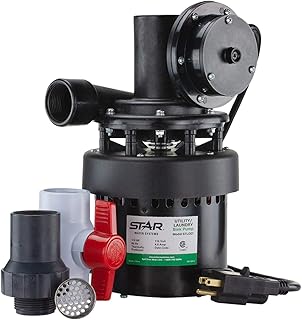

Star STL001 Automatic Utility/Laundry Sink Pump (1/3 HP) Mounts Directly Under Sink Tub, Heavy-Duty Thermoplastic, 115V, Includes Drain Screen, Check Valve & Ball Valve

About this item 1/3 HP AUTOMATIC UTILITY / LAUNDRY SINK PUMP – Ideal for laundry tubs, utility sinks, basement bars, washing machines and applications where a gravity drain line is not available; this system eliminates the need for traps and vents AUTOMATIC OR MANUAL OPERATIONS – Features a piggyback diaphragm switch that allows for automatic operation for worry-free protection or can be unplugged if manual operation is needed; grounded plug cord length is 8 feet QUICK & EASY TO INSTALL – This 0.33 HP utility sink pump does not require trap / inlet piping or vent connection and includes a sink drain screen, 1-1/4-in NPT x 1-1/4-in slip check valve, and 1-1/4-in NPT ball valve (No need to break concrete to install a sink) PUMPS 22 GPM & COMPLETELY SELF-CONTAINED – Quickly removes water from laundry sinks, utility tubs, bar sinks, washing machines and all wastewater not containing solids; unit is completely self-contained for direct mount under wet bars, sinks / tubs, kitchenettes, vanities and more HEAVY DUTY CONSTRUCTION – Built for long life and dependability, this thermoplastic tub pump will not rust or corrode and features a 115V, 60Hz thermally protected 1 phase motor; Covered by Star Water Systems 1-year limited warranty Product Description Weight: 15lbs Motor: ⅓ HP Hertz: 60 Volts: 115 TagAmp: 4.0 Phase: 1 Discharge size: 1-¼ inch NPT Flow: 11 GPM at 0 inch lift Thermally Protected Motor Each automatic utility/laundry sink pump features a thermally protected motor. The thermal protector consists of a heat-sensing element built into the motor with an external control device that turns the under sink pump off when it detects excessive heat within the circuitry. After the motor temperature cools to a safe operating temperature, the utility sink pump will reset itself. Performance The Star STL001 Automatic Utility/Laundry Sink Pump mounts under a wet bar or tub to drain all waste water not containing solids where gravity drain lines are not available. It pumps 22 gallons per minute (GPM). The basement utility sink pump can function at a vertical lift up to 10 feet above the pumping level and pump at 3.5 GPM. As a compact pump, you can fit the unit under most sinks for a versatile pump solution. Automatic or Manual Operations Enjoy protection with the option to alternate between manual or automatic operations. Each drain pump features an 8-foot-long ground plug cord, allowing for optimal flexibility when it comes to plugging in your pump. Since the pump uses a piggyback diaphragm switch, the float switch and pump are two separate components. During manual operations, your automatic utility and laundry sink pump will only operate by plugging it directly into an electrical outlet. To have your pump function automatically, the float plug goes into the outlet first, followed by the pump’s plug. Quick Setup The Star STL001 Automatic Utility/Laundry Sink Pump is ideal for applications where gravity drain lines are unavailable, making it a perfect solution for many appliances in your home, such as washing machines and utility sinks. To connect your automatic utility/laundry sink pump, ensure you have at least 5 inches from the sink bottom to the inlet and connect the pump to the sink tailpipe with the 1 ½-inch pipe. Next, install the discharge pipe, elbow, male adapter, check valve and ball valve. The check valve should have a vertical height of at least 6.5 feet to prevent valve leakage. Connect the discharge pipe to a building drain for a total discharge height of less than 11 feet. After installing the utility sink pump, plug the switch into a GFCI-protected, grounded outlet and then fill the sink, tub or washing machine with water and adjust the flow with the ball valve. After setting the ball valve, your laundry sink pump is ready for use. The Star STL001 Automatic Utility/Laundry Sink Pump Package Arrives Pre-Assembled for Easy Installation The Star STL001 Automatic Utility/Laundry Sink Pump arrives ready for installation for quick and easy setup. Each basement utility sink pump comes with a thermally protected motor, a piggyback diaphragm switch and additional accessories such as a 1 ¼-inch NPT ball valve, 1 ¼-inch NPT x 1 ¼-inch slip check valve and a sink drain screen. Ideal for Installation Under Sinks and Wet Bars The Star STL001 Automatic Utility/Laundry Sink Pump is a great solution for wet bars and laundry tubs. The basin is 13.6 inches in diameter and 9.4 inches high for a compact and self-contained drain pump option. Piggyback Diaphragm Switch The Star STL001 Automatic Utility/Laundry Sink Pump comes with a piggyback diaphragm switch for automatic or manual operations. The Star STL001 Automatic Utility/Laundry Sink Pump is pressure activated and the motor will turn on as soon as water enters the pump and will continue operation until the pump is empty. The piggyback diaphragm plug design allows you to use the pump manually or automatically. Switch to manual mode to test the pump before use, or plug the pump and the float plug together into an outlet for automatic water removal. Product information Technical Details Brand ‎Star Color ‎Multicolor Material ‎Thermoplastic Style ‎Diaphragm Product Dimensions ‎7.75″L x 7.75″W x 11.75″H Power Source ‎Corded Electric Maximum Flow Rate ‎22 Gallons Per Minute Maximum Lifting Height ‎11 Feet Voltage ‎115 Volts Manufacturer ‎Star Water Systems UPC ‎054757100506 Item Package Dimensions L x W x H ‎13.5 x 10.2 x 9.2 inches Package Weight ‎6.74 Kilograms Item Dimensions LxWxH ‎13.58 x 10.32 x 9.41 inches Brand Name ‎Star Warranty Description ‎Warranty Model Name ‎Star STL001 Automatic Utility/Laundry Sink Pump (1/3 HP) Mounts Directly Under Sink Tub, Heavy-Duty Thermoplastic, 115V, Includes Drain Screen, Check Valve & Ball Valve Suggested Users ‎unisex-adult Number of Items ‎1 Part Number ‎STL001 Included Components ‎Star STL001 Automatic Utility/Laundry Sink Pump (1/3 HP) Mounts Directly Under Sink Tub, Heavy-Duty Thermoplastic, 115V, Includes Drain Screen, Check Valve & Ball Valve Size ‎One Size Additional Information ASIN B08GMZ6G15 Customer Reviews 4.0 4.0 out of 5 stars 160 ratings 4.0 out of 5 stars Best Sellers Rank #76,130 in Tools & Home Improvement (See Top 100 in Tools & Home Improvement) #30 in Utility Pumps Date First Available August 25, 2020 Feedback Would you like to tell us about a lower price?
