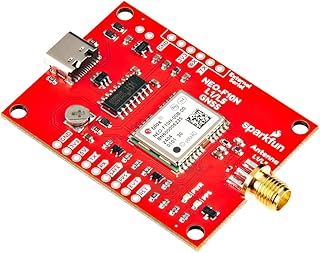

SparkFun GNSS L1/L5 Breakout – NEO-F10N, SMA – GPS – Galileo – Beidou – 3.3V Logic – Power 5V-3V – Board Dimensions 50.8 mm x 38.1 mm

Supports concurrent reception of three GNSS constellationstions: GPS, Galileo, and Beidou; Meter-level positional accuracy Receives L1/L5 Bands: Improved performance in challenging urban environments; Chooses the best signals from both bands than with L1 alone CH340 USB-to-serial converter: Easily connect to computer USB port On-board rechargeable battery: Reduce time to first fix from cold start or hot start Features: 1x USB Type C Connector; ESD Protection Diodes for USB Data Lines; Integrated SMA Connector; Voltage: 5 V or 3.3 V but all logic is 3.3 V; Current: 21 mA-26 mA (varies with constellations and tracking state); AP2112K 3.3V/600 mA Voltage Regulator; Backup Battery to Aid in Hot Starts; Time to First Fix: 28s (cold); 2s (hot) Max Navigation Rate for Single GNSS Configuration (GPS): 20 Hz, Positional Accuracy (GPS): 1.5m, Time Pulse Accuracy: 30ns Product requires an antenna: Included an SMA connector for a secure connection; Board Dimensions (not including SMA connector): 50.8 mm x 38.1 mm From the brand Since 2003, SparkFun has been helping turn ideas into reality. We’re here to help you start something. Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store
