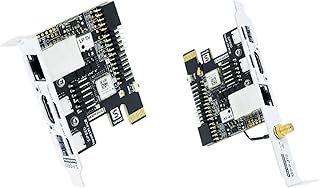

Sipeed NanoKVM-PCIe IP-KVM Remote Control Operations Maintenance Server, DDR3 RISC-V Linux Development Board, 1TOPS NPU 1GHz SG2002 RISC-V CPU, HDMI PCIe 100M Network Port (NanoKVM-PCIe ETH+WiFi+PoE)

About this item [Remote Control OM Server] Sipeed Lichee NanoKVM-PCIe PiKVM Remote Control Operations and Maintenance Server is an IP-KVM product based on LicheeRV Nano RISC-V Linux Single Board Computer, which inherits the extreme size and powerful functions of LicheeRV Nano. It supports MJPEG, H264(WIP) video encoding, 1080P 60fps resolution, 90~230ms video latency, 100M/10M Ethernet on board, Size: 66x57x18mm. [Meet the Different Needs Of Users] Sipeed NanoKVM-PCIe remote control server is based on NanoKVM-Cube PiKVM with optional WiFi, PoE function (optional), PCIe slot, which can be accessed from the motherboard PCIe slot, and more stable wired connection (ETH) to meet the needs of more professional. In order to meet the different needs of users, NanoKVM-PCIe provides two optional modules, WiFi and PoE, which can be freely selected. [Support 100M/10M Hundred Gigabit Ethernet] Sipeed Lichee NanoKVM-PCIe RISC-V Linux Development Board comes standard with a 100M Ethernet port for network transmission of video, control signals, etc. In addition, the Full version also comes with an ATX power control port (USB-C form factor) for remote control and host switching status, and an OLED display underneath the Full version’s casing for displaying local IP and KVM-related status. [Multi-function Interface] Sipeed Lichee NanoKVM-PCIe RISC-V Linux Remote Control Operations Server includes an HDMI input port, which can be recognized by the computer as a monitor to capture the computer’s screen; and a USB2.0 port to connect to the host computer, which can be recognized as a HID device such as a keyboard, a mouse and a touchpad. At the same time, using the extra storage space of TF card, it can be mounted as a USB flash drive device. [Support Remote Mounting] Sipeed Lichee NanoKVM-PCIe Maintenance Server supports analog USB flash drive device, can be mounted on the installation image to install the system, you can also enter the BIOS on the computer setup; support for remote serial port: NanoKVM-PCIe server leads to two sets of serial ports, which can be used with the IPMI, or connected to other boards to use the web page serial terminal interaction, in addition to the user can expand their own! [Server Management Support] Sipeed Lichee NanoKVM-PCIe Maintenance Server can be used to monitor servers in real time, get the running status of servers and control them. Support remote desktop, switching machine: NanoKVM gets rid of the limitations that the host computer must be connected to the Internet and the system software, and can be used as the external hardware of the host computer to provide the function of remote control directly. [Wiki] Getting Start: “https://wiki.sipeed.com/hardware/en/kvm/NanoKVM/quick_start.html”. Datesheet SDK Document download please click “WayPonDEV” store and ask the question. All after-sales questions, please leave the message to “wpd#youyeetoo&com (#—>@,&—>.)”. Product information Technical Details Collapse all Summary Processor ‎1 GHz RAM ‎DDR3 Other Technical Details Brand ‎WayPonDEV Series ‎NanoKVM-PCIe Remote Control Operations Maintenance Server Item model number ‎NanoKVM-PCIe Eth+WiFi+PoE Operating System ‎Linux Package Dimensions ‎3.15 x 2.36 x 1.57 inches Color ‎1GHz SG2002 RISC-V CPU Manufacturer ‎WayPonDEV ASIN ‎B0DQ4QLCTK Country of Origin ‎China Date First Available ‎December 11, 2024 Additional Information Best Sellers Rank #4,993 in Single Board Computers (Computers & Accessories) Warranty & Support Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is “dead on arrival,” arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test “dead on arrival” returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
