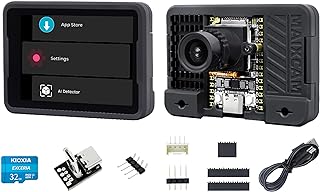

Sipeed MaixCAM 1TOPS NPU RISCV Development Board, 256MB DDR3 C906 RISC-V CPU SBC, AI Smart Vision Sensor for AI Face Recognition/Object Tracking, Support Phython C/C++ Programming (MaixCAM Module)

About this item [RISC-V C906 1GHz CPU] Sipeed MaixCAM AI RISCV Development Board adopted 1GHz RISC-V C906 Big CPU (running Linux), 700MHz RISC-V C906 small CPU (running RTOS), 25~300MHz 8051 Low Power Core CPU; 1TOPS@INT8 NPU, support BF16, Mobilenetv2, YOLOv5 and YOLOv8 common models; onboard 256MB DDR3 RAM, support TF card boot/SD NAND boot Storage. It is also support WiFi6 and BLE5.4 module, onboard 32GB TF card built-in system supports out-of-box use. [Rich Software Ecosystem] Sipeed MaixCAM AI Smart Vision Sensor Kit support MaixPy Python 3 Development; Support MaixVision with AI vision IDE, Programming, Code Running, Image Preview in real time and Graphical Programming; Support MaixHub online AI model training platform; Support MaixCDK with C++ version of MaixPy is supported, so developers familiar with C/C++ can get started right away. [Rich Peripheral Devices] Sipeed MaixCAM AI RISCV Linux Single Board Computer onboard 1x MicroSD card slot, supports TF card startup; 2.3-inch high-definition IPS capacitive touch screen (resolution 552×368), onboard PA amplifier audio output, audio input space for direct radio reception, support customizable ethernet version.1x Type-C USB2.0 port, 2x 14pin 2.54 pin IO interface, and common peripherals such as I2C/SPI/UART/ADC/PWM/WDT. [Wide Range of Applications] Sipeed MaixCAM Wifi6 AI Machine Smart Vision Sensor onboard 4MP camera module and 2.3-inch hd touch screen, support AI Object Detection, AI Face Recognition, AI people motion detection, AI Object Tracking, AI Classifier, Line Tracking, Temprature image capture/measure (Optional Thermal Camera), AI Self Learning Detector, AI Monitor Stream, Desktop Monitor and so on. [AI Vision AIOT Development] Sipeed MaixCAM AI Smart Vision Sensor Module Kit can deploy AI models to physical hardware (MaixCAM). It also provides easy-to-use model conversion tools, MaixPy SDK, supporting development tools, rich documentation and tutorials. It is very suitable for the upgrading and implementation of enterprise products, and is a powerful tool for makers and engineers to develop prototypes. [Wiki] Any after-Sales supporting, Getting Start and Document SDK downloard,please ask a question and contact us by click “Waypondev” store or leave the message to “wpd#youyeetoo&com (#—>@,&—>.)”. › See more product details Product Description MaixCAM RISCV AI Vision Sensor Specificities ——-Sipeed MaixCAM is a hardware product designed for better implementation of AI vision, auditory, and AIOT applications. It is a platform that can quickly verify product prototypes and quickly mass-produce. It provides a powerful and cost-effective processor, matching cameras, screens, WiFi6, etc., as well as a complete and very easy-to-use software ecosystem. [AI algorithm implementation] AI algorithm engineers can quickly deploy their AI models to physical hardware (MaixCAM), providing easy-to-use model conversion tools and SDK. [STEM Education] Provide easy-to-use MaixPy SDK and matching development tools, as well as online model training platforms. Teachers do not need software and hardware development, focus on teaching, and students can get started quickly. [Good Helper for Competitions] MaixCAM + MaixPy + MaixCDK can quickly realize many innovations and functions, suitable as a designated software and hardware platform for competitions, and players can also rely on the development efficiency of the ecosystem to win the competition. Maix series products and MaixPy have been used in various competitions to win awards. [University Research and Education] Provide rich documents and tutorials, students at all stages of the university have suitable learning routes, and RISC-V and AI cutting-edge technology are also good helpers for scientific research. [Prototyping Tool for Makers and Engineers] Carefully designed hardware, rich peripherals, super easy-to-use software, let your interesting ideas and products land quickly, without being trapped in the quagmire of basic software and hardware development. [Enterprise Product Upgrade and Implementation] Quickly implement products without expensive R&D costs, or use them to assist products such as production line QA, and use AI vision to realize intelligence of old equipment. Sipeed MaixCAM AI Smart Vision Sensor support Rich Software Ecosystem [Rich Software Ecosystem] MaixPy (v4) ：Python3 development package, provides a rich and easy-to-use API, optimized for MaixCAM, supports hardware acceleration, provides rich documentation tutorials. Rapidly landing AI vision and hearing applications. MaixVision：Support AI Vision IDE, programming, code running, real-time image preview, and even graphical programming, greatly reducing the difficulty of setting up the development environment and the threshold of use. MaixCDK：Support C++ version of MaixPy, developers familiar with C/C++ can get started immediately. Wiki Address： —-MaixPy (v4)：“wiki.sipeed.com/maixpy/”. —-MaixVision：”wiki.sipeed.com/maixvision” —-MaixCDK: “github.com/sipeed/MaixCDK” Support MaixHub Cloud Platform： MaixHub：Support Online AI model training platform, no need for AI knowledge and expensive training equipment, one-click model training, one-click deployment to MaixCAM. —-MaixHub: “maixhub.com/welcome” Sipeed MaixCAM 1GHz C906 RISC-V CPU Single Board Computer Hardware Performances : Big CPU: 1GHz RISC-V C906 Big CPU (running Linux). Small CPU: 700MHz RISC-V C906 small CPU (running RTOS), 25~300MHz 8051 Low Power Core CPU. NPU: 1TOPS@INT8 NPU, support BF16, Mobilenetv2, YOLOv5 and YOLOv8 common models. Memory: 256MB DDR3 RAM, support TF card boot/SD NAND boot Storage. Network: Onboard WiFi6 + BLE5.4 module, customizable Ethernet version Camera: Supports up to 5M camera, officially 2K(4MP) Camera Module (4 lane MIPI CSI input, 22Pin interface, supports split dual-channel CSI) 2.3-inch High-Definition IPS capacitive touch screen (Resolution 552×368) USB: Type-C USB2.0 IO Interface: 2 x 14pin 2.54 pin header interface, 800mil spacing, can be directly inserted into the breadboard Button: 1 x RST button + 1 x USER (function) button LED: Power indicator + user LED Codec: H.264 / H.265 / MJPEG hardware decoding, supports 2k@30fps encoding and decoding Peripheral: I2C/SPI/UART/ADC/PWM/WDT and other common peripherals Sipeed MaixCAM AI Smart Vision Sensor support Out-of-box Use If with 32GB TF card： Sipeed MaixCAM Wifi6 AI Machine Smart Vision Sensor onboard 4MP camera module and 2.3-inch hd touch screen, AI Face Recognition, AI People Motion Detection AI Object Tracking, AI Classifier, AI Object Detection Temprature image capture/measure (Optional Thermal Camera) AI Self Learning Detector, AI Monitor Stream Line Tracking, Desktop Monitor and so on. Sipeed MaixCAM AI Smart Vision Sensor support Wide Range of Applications [Wide Range of Applications] lntelligent Transportation Makers Implementing Creative Ideas STEM Education Smart Security Systems Smart Retail Solutions Production Line Automation Public Security Screening Highe rEducation and Competitions Logistics,warehousing, and Transportation Agricultureand Biological Monitoring Engineers for Prototype Verification and lmplementation Sipeed MaixCAM with Different Distribution List Options [Shipping List] MaixCAM Lite Bundle: with 32GB TF Card, supports out-of-box use. MaixCAM Baisc Bundle: without 32GB TF Card, incapable of out-of-box use. MaixCAM Module Bundle: with 32GB TF Card, supports out-of-box use. ———Note: If MaixCAM Sensor don’t onboard 32GB TF card, it can’t supports out-of-box use. Product information Technical Details Collapse all Summary Processor ‎1 GHz RAM ‎DDR3 Wireless Type ‎5 GHz Radio Frequency, 802.11a/b/g/n/ac, 2.4 GHz Radio Frequency Other Technical Details Brand ‎WayPonDEV Series ‎Sipeed MaixCAM AI Smart Vision Sensor Camera Module Item model number ‎Sipeed MaixCAM Module Operating System ‎MaixPy, MaixVision, MaixCDK, Linux, MaixHub Item Weight ‎4.2 ounces Package Dimensions ‎3.94 x 2.36 x 1.18 inches Color ‎MaixCAM Module Processor Brand ‎1GHz RISC-V C906 CPU Number of Processors ‎1 Manufacturer ‎WayPonDEV ASIN ‎B0D474ZCLG Country of Origin ‎China Date First Available ‎May 15, 2024 Additional Information Customer Reviews 3.7 3.7 out of 5 stars 6 ratings 3.7 out of 5 stars Best Sellers Rank #7,164 in Single Board Computers (Computers & Accessories) Warranty & Support Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is “dead on arrival,” arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test “dead on arrival” returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
