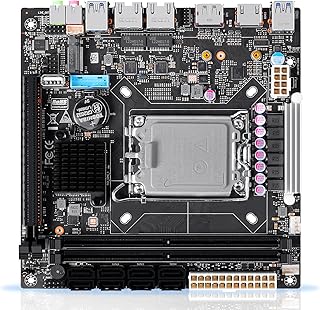

About this item LGA1700 Socket: Q670 8-Bay NAS board is compatible with Intel Core i3/i5/i7 12th/13th/14th Gen. desktop processors, and we recommend the T-Series desktop processors (DO NOT recommend the K-Series processors), which are more energy efficient. It’s 6.7″ x 6.7″ mini-ITX form factor, basic TDP is 65W, and it supports Windows 10/11, Linux i226-LM Port: This Q670 NAS motherboard has 1* i226 2.5GbE port and 1* i226-LM 2.5GbE port. i226-LM port supports vPro function, but it requires the processor is integrated graphics and setting in BIOS. The vPro is essential for remotely repairing a malfunctioning computer that is unable to access the system High Productivity: 2* USB3.2 Gen2(Type-C) with 20Gbps, 8* Native SATA3.0 with 6Gbps, stable and ultra-fast transfer speed. 2* desktop U-DIMM DDR5 RAM(for 12th Gen. CPU, it supports 4800MHz by default; for 13th Gen. CPU and above, it supports 5600MHz by default), MAX 128GB, 1* M.2 NVMe (PCIe3.0 x4) 2280, 1* M.2 NVMe (PCIe4.0 x4) 2280 and 1* M.2 NVMe (PCIe4.0 x4) 2280/22110 onboard Dual 4K Display: This mini-ITX board has HDMI2.0 and DP1.4 ports at 4K@60Hz, and it has PCIe5.0 x16 slot which can be expanded to graphics cards, PCI-E network cards, support for various types of PCI-E protocol expansion accessories Heat Dissipation: It is compatible with LGA115x or LGA1700 series processors cooling fan NOTE: The motherboard requires both 24PIN + 8PIN power connections to power up. It will take a few minutes for the motherboard to read the memory information when you first turn on it, please be patient. If you need to go to the BIOS page, keep pressing “DEL” while booting up Product Description Highlights of Q670 NAS Motherboard: 6.7″ x 6.7″ (17cm x 17cm) standard Mini-ITX board, compatible with LGA115x/LGA1700 series CPU fan. 1* Intel i226-LM 2.5G RJ45 network port to support Intel vPro remote management function. 1* Intel i226-V 2.5G RJ45 network ports. 1* HDMI2.0 and 1* DP1.4 Ports to support dual display. 2* USB3.0 ports, 1* USB3.2 port, 1* Type-C 20Gbps rate. Built-in a set of USB3.0 and USB2.0 pin sockets can be connected to the panel through the cable. Built-in a USB2.0 interface to support USB flash disk encryption and other applications and part of the system boot. NOTE: This Q670 8-Bay NAS motherboard supports vPro function, but this vPro function requires a combination of motherboard chip, BIOS, NIC chip and CPU. For motherboard chip, it requires Q670 & W680; For BIOS, it requires special settings; For NIC chip, it requires i226-LM; For CPU, it should be i5 1×500 or above, and Integrated graphics is required. NOTE: When using the PCIe slot, the motherboard only has one memory slot available, if you need to use both memory slots at the same time, please leave msg to the seller so that we can send a new BIOS to be updated to fix it. For the user manual, please visit our store FAQ page to download it or leave msg to the seller. If you encounter the mini-itx motherboard can not boot up, please follow the steps below to troubleshoot and solve the problem: First, ensure that the 24PIN + 8PIN power supply ports are connected Troubleshooting the memory slot inside whether there is dust Check whether the memory gold finger stains Finally, check the CPU pin whether there is a twisted pin phenomenon. How can we confirm if the memory is causing the failure to boot? Unplug the RAM and turn on the motherboard, will it make an alarm sound? If it does, it means there is no problem with this NAS board, plug the memory in again, the first time the motherboard needs to read the memory information, please wait a few minutes after booting. If it doesn’t, please disconnect the BIOS battery from the motherboard and put it back on after 5 minutes. Memory Compatibility Recommendations: It is compatible with Crucial memory It is compatible with Samsung memory Please NOTE: Motherboards are currently only compatible with 20 series and below graphics cards. If you have more questions, please don’t worry, we have professional technical team to help you solve the problem. I/O Panel 2* USB3.0, 1* USB3.2, 1* Type-C(USB3.2 rate, no display support), 1* HDMI2.0, 1* DP1.4, 2* 2.5G RJ45 port, 2* Audio Interface Video Outputs 1* HDMI2.0 (4096×2160@60Hz) and 1* DP1.4 (4096×2160@60Hz) to support dual 4K display Network Card 1* Intel i226-LM 2.5G RJ45 port, 1* Intel i226-V 2.5G RJ45 port TDP 65W Base power consumption OS Compatible with Linux/Windows 11/Windows10, EFI mode only When installing the CPU, please follow the above illustration to install it correctly, otherwise the CPU pins may be skewed, resulting in motherboard damage and failure to boot. Please leave msg to the seller for a video guide on booting and troubleshooting. LGA1700 Socket Processor Support Intel 12th/13th/14th generation LGA1700 desktop processors. Note: 1. default support for 65W TDP processor, DO NOT recommend the K-Series processors; 2. It is recommended to use 13500T and other processors with T-series processor. For long-term use, low power consumption is more energy efficient. Dual DDR5 RAM Slots 2* Desktop U-DIMM DDR5 memory slots and default support 5600MHz.(Compatible with 4800MHz/5200MHz) Note: 12th Gen. processors only support 4800MHz, and the default support for the 13th Gen. processor and above is 5600Mhz. Dual memory slots support up to 128GB RAM. 8x Native SATA Signals 8 SATA3.0 ports with independent transfer rate up to 6Gbps per port. PCIe 5.0 x16 Interface PCIe 5.0 x16 interface can be expanded PCI-E network card, array card, graphics card. Support all kinds of PCI-E protocol expansion accessories. PCIe NVMe M.2 Slots The front of the motherboard supports SSD1 PCIe4.0 x4 M.2 2280 and 22110 size, Speeds up to 7500M/s+ The back of the motherboard supports SSD2 PCIe3.0 x4 M.2 2280 and SSD3 PCIe4.0 x4 M.2 2280, Speed can reach 7500M/s+ Q670 6-Bay NAS board Purple N100 6-Bay NAS board 8505 6-Bay NAS board i3 N305 4-Bay NAS PC Add to Cart Add to Cart Add to Cart Add to Cart Price $289.99 $289 . 99 $225.99 $225 . 99 $315.99 $315 . 99 $359.99 $359 . 99 CPU i3/i5/i7 12th/13th/14th Gen. desktop processors Intel N100 4-core 4-thread, up to 3.4GHz Intel Pentium Gold 8505 5-core 6-thread, up to 4.4GHz Intel i3 N305 8-core 8-thread, up to 3.8GHz RAM 2* DDR5 slot, up to 64GB 1* DDR5 slot, up to 48GB 2* DDR5 slot, up to 64GB 1 x DDR5 slot, up to 48GB SSD 2* M.2 NVME (PCIe4.0x4), 4* M.2 NVME (PCIe3.0x1) by extension 2* M.2 NVME (PCIe3.0x1), 1* TF card slot 2* M.2 NVME (#1. PCIe4.0x4; #2. PCIe3.0x1), 4* M.2 NVME (PCIe3.0x1) by extension 4* M.2 NVMe 2280 (PCIe3.0x1) SATA 2* SATA3.0, 4* SATA3.0 by extension 6* SATA3.0 2* SATA3.0, 4* SATA3.0 by extension 2* 12Pin JFPC SATA Socket Display 1* HDMI, 1* DP 1* HDMI, 1* DP 1* HDMI, 1* DP 2* HDMI Network 1* i226-LM 2.5GB (vPro), 3* i226-v 2.5GB 2* i226-v 2.5GB 4* i226-v 2.5GB 2* i226-v 2.5GB OS Support Windows10, Windows11, Linux Windows10, Windows11, Linux Windows10, Windows11, Linux Windows10, Windows11, Linux Power Supply ATX 24pin + 8pin ATX 24pin + 4pin ATX 24pin + 4pin 12V 5A Accessories 1* I/O Shield, 1* SFF8643 Adapter Cable, 1* SFF8643-4NVMe Adapter Backplane 1* I/O Shield 1* I/O Shield, 1* Cooling Fan, 1* SFF8643 Adapter Cable, 1* SFF8643-4NVMe Adapter Backplane 1* 12V 5A Power Supply, 1* HDD Screws & Feet Pads Product information Product Dimensions 6.7 x 6.7 x 1 inches Item Weight 1.23 pounds Manufacturer ChangNet Networks Inc. ASIN B0D2PC3PTW Country of Origin China Item model number CW-L02-NMQ670 Customer Reviews 4.0 4.0 out of 5 stars 10 ratings 4.0 out of 5 stars Best Sellers Rank #354 in Computer Motherboards Date First Available April 24, 2024 Warranty & Support Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
