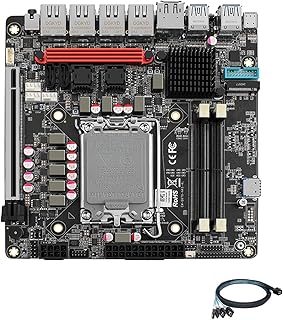

Q670 6-Bay Mini ITX NAS Motherboard for 12/13/14 gen CPU,2X DDR5 Desktop Processor, 3X M.2 Nvme,2X usb3.2,with Vpro (Q670+sff-8643-1to4)

About this item Q670 Nas mainboard Support Inte 12/13/14 generation desktop processor LGA 1700 TDP65W power consumption.It’s 6.7″ x 6.7″ mini ITX motherboard form factor, basic TDP is 65W, up to 125W, Dual-channel desktop U-DIMM DDR5 slot For All In One: Q670 4 LAN NAS motherboard has 1* i226-LM 2.5GbE port (LAN1) and 3* i226-V 2.5GbE ports (LAN2/LAN3/LAN4) for use in professional network security firewall appliances. Besides, i226-LM port supports vPro function, but it requires the processor is integrated graphics and setting in BIOS. The vPro is essential for remotely repairing a malfunctioning computer that is unable to access the system 2* SO-DIMM DDR5 slots (non-ECC), Default support 5600MHz backward compatible, RAM supports up to 64GB, 6* SATA3.0 (SATA1-SATA2 is native, the other 4* SATA3.0 can be extended by the SFF8643 adapter cable), 6* M.2 NVMe (1* M.2 NVMe 2280/22110 (PCle4.0 x4), 1* M.2 NVMe 2280 (PCle4.0 x4), and the other 4* M.2 NVMe (PCIe3.0 x1) can be extended by the SFF8643 4NVMe adapter backplane), stable and ultra-fast transfer speed 2* USB3.2 Gen2(Type-C) with 20Gbps, 8* Native SATA3.0 with 6Gbps, stable and ultra-fast transfer speed. 2* desktop U-DIMM DDR5 RAM(for 12th Gen. CPU, it supports 4800MHz by default; for 13th Gen. CPU and above, it supports 5600MHz by default), MAX 128GB, 1* M.2 NVMe (PCIe3.0 x4) 2280, 1* M.2 NVMe (PCIe4.0 x4) 2280 and 1* M.2 NVMe (PCIe4.0 x4) 2280/22110 onboard THE Q670 NAS board has HDMI2.0 and DP1.4 ports at 4K@60Hz, and it has PCIe5.0 x16 slot which can be expanded to graphics cards, PCI-E network cards, support for various types of PCI-E protocol expansion accessories Product Description Q670 NAS motherboard mini itx with Vpro 17×17 MINI ITX Motherboard compatible with LGA1700 series CPU heat sink One SFF-8643 PCle x4 signal socket can be used to transfer four M.2 NVMe signals through an adapter board 1 SFF-8643 SATA signal socket, one to four, generates 4 SATA 3.0 signals without the need for an adapter chip 1 Inte i226-LM 2.5G supports VPRO Inte Proactive Management Technology AMT) 3 Inte i226-V2.5G integrated filters RJ45 network ports 1 Wi Fi interface supporting PCle signal and CNvi protocol wireless network card 1 Type-C port (USB 3.2 Gen2 * 2 20Gbps) speed with 15W power supply does not support display 4 USB 3.0 Gen2 10Gbps interfaces Design details of 6 bay NAS Q670 motherboard Dual DDR5 Laptop memory slot Recommended to use 5600MHz frequency (compatible with 4800/5200MHz) 5600MHz requires a 13th generation i7 or above processor,with a maximum support of 48G per unit and a maximum support of 96G for dual channels PCIe x16 slot PCle5.0x16 slot x16 signal, can be plugged into expansion network cards, graphics cards, etc Jumping resistor supports splitting into 2 x8 signals and expansion cards supporting PCI-E protocol CPU LGA1700 The 6 bay Q670 chipset supports 12/13/14 generation desktop processors TDP supports up to 125W NAS. Users are recommended to use a T-series CPU for power saving Dual M.2 NVMe Two M.2 signals on board are both PCle4.0x4 Front support 2280/22110 Back supports 2280 size Specification parameters CPU Supports Inte 12th/13th/14th generation LGA1700 desktop processors Note: The vPro feature requires an i5-1X500 or higher processor to be used. The F series does not support it and requires a graphics card to support it Note: By default, it supports 125WTDP processors, but it is not recommended to use K-series processors with high power consumption Note: It is recommended to use processors with T, such as 13500T, which have low power consumption and are suitable for long-term use Memory Supports notebook SO-DIMM DDR5 memory technology but does not support ECC. 2 * SO-DIMM DDR5 dual channel memory slots DDR5 supports 5600MHz by default (note: processors below 13th generation i7 only support 4800MHz). The maximum capacity of a single memory is 48GB, and the maximum capacity of two memories is 96GB Storage 2 * M.2NVMePCle4.0x4 signal (front compatible size 2280/22110, back compatible size 2280) ;2 * native SATA3.0 socket+1 * SFF-8643 socket native supports 4 SATA3.0 ;1 * SFF-8643 PClex4 signal sockets support expansion board conversion to 4 M.2NVMe Network card 3 * Inte i226-V2.5G RJ45 electrical port ;1 * Inte i226-LM2.5GRJ45 electrical port (supports vPro) remote management function Structure ITX motherboard specifications: 6.7 inch * 6.7 inch, 170mm * 170mm solid-state capacitor design Operating system Support Microsoft Windows 10/11 64 bit Compatible with Linux; Only supports EFI mode EMA Remote control (Vpro) After the system crashes, you can directly choose to restart the host and enter the BIOS (BIOS interface) to set BIOS (BIOS) to repair or reinstall the system notes: The vPro function requires a nas motherboard chip+BIOS+network card chip+CPU combination to complete. The motherboard chip requires Q670 BIOS and requires special tuning The network card chip requires i226- LMCPU requires i5 1X500 or above, and the graphics card needs to meet the above requirements before using vPro function. Users who need to use vPro are advised to pay attention In terms of memory, the 12th generation only supports 4800MHz by default, while the 13th generation i7 and above support 5600MHz by default. In terms of heat dissipation, it is compatible with 1700 specification heat sinks Product information Product Dimensions 6.7 x 6.7 x 0.9 inches Manufacturer SIENSNET ASIN B0DJVHRQRZ Country of Origin China Best Sellers Rank #661 in Computer Motherboards Date First Available October 11, 2024 Warranty & Support Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
