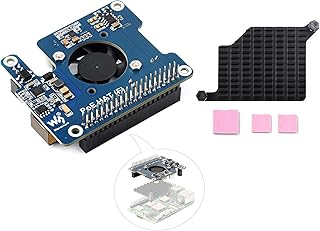

About this item Power Over Ethernet HAT (POE HAT) for Raspberry Pi 5. Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs. Supports 802.3af/at Network Standard. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments It is providing both network connection and power supply for your Raspberry Pi in one cable Onboard 5V & 12V header outputs. 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power), be able to power extra devices while providing stable power to Raspberry Pi Onboard high speed active cooling fan, with metal heatsink, better heat dissipation Onboard MP8759GD buck chip. Incorporates original voltage buck chip, providing up to 5A under sufficient heat dissipation condition Easy to install: Attach the thermal tapes first, then install metal heatsink and fix the PoE HAT Provide Online Development Resources /User Manual: bit.ly/3H5wFyZ Product Description Power Over Ethernet HAT-POE HAT (F) for Raspberry Pi 5, High Power, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3af/at network standard Features at a glance The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable. Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5 PoE (Power Over Ethernet) capability，IEEE 802.3af/at-compliant Fully isolated switched-mode power supply (SMPS) Onboard high speed active cooling fan, comes with metal heatsink, better heat dissipation Specifications PoE Power Input 37V ~ 57V DC in Power Output GPIO header: 5V 4.5A (MAX); 2P header: 12V 2A (MAX) Network Standard IEEE 802.3af/at PoE Dimensions 56.5 × 70.0mm Suitable for Raspberry Pi 5 & Active Cooling Fan Suitable for Raspberry Pi 5: Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs Active Cooling Fan: Accelerate Cooling Effect, More Stable Performance Power Over Ethernet–Providing both network connection and power supply for your Raspberry Pi in one cable Onboard 5V & 12V Header Outputs / Onboard MP8759GD Buck Chip Onboard 5V & 12V Header Outputs: 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power); Be able to power extra devices while providing stable power to Raspberry Pi. Onboard MP8759GD Buck Chip: Incorporates original voltage buck chip, providing up to 5A under sufficient heat dissipation condition How to Install & Outline Dimensions PoE HAT (G) PoE HAT (F) PoE HAT (E) PoE HAT (C) PoE HAT (B) Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.2 out of 5 stars 21 4.3 out of 5 stars 16 4.2 out of 5 stars 114 4.0 out of 5 stars 17 4.2 out of 5 stars 72 Price $23.03 $23 . 03 $28.79 $28 . 79 $19.19 $19 . 19 $24.95 $24 . 95 $26.87 $26 . 87 Supported Pi for Raspberry Pi 5 for Raspberry Pi 5 for Raspberry Pi 3B+/4B for Raspberry Pi 3B+/4B for Raspberry Pi 3B+/4B Network Standard IEEE 802.3af/at PoE IEEE 802.3af/at PoE IEEE 802.3af PoE IEEE 802.3af/at PoE 802.3af PoE PoE Power Input 38V ~ 57V DC in 37V ~ 57V DC in 37V ~ 57V DC in 37V ~ 57V DC in 37V ~ 57V DC in PoE Power Output GPIO header: 5V 5A (MAX) GPIO header: 5V 4.5A (MAX); 2P header: 12V 2A (MAX) 5V 2.5A DC out USB-A: 5V 4A (MAX); 2P header: 12V 2A (MAX) 5V 2.5A DC out Feature Compatible With Pi 5 Official Case, High Power With Metal Heatsink Compatible With Pi 3B+/4B Official Case High Power, cost effective with OLED display, cost effective Product information Technical Details Collapse all Other Technical Details Brand UeeKKoo Item Weight 0.32 ounces Product Dimensions 1.57 x 1.5 x 0.2 inches Item Dimensions LxWxH 1.57 x 1.5 x 0.2 inches Processor Brand Broadcom Number of Processors 1 Manufacturer UeeKKoo ASIN B0D5HHTGLK Date First Available May 29, 2024 Additional Information Customer Reviews 4.3 4.3 out of 5 stars 16 ratings 4.3 out of 5 stars Best Sellers Rank #5,361 in Single Board Computers (Computers & Accessories) Warranty & Support Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is “dead on arrival,” arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test “dead on arrival” returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
