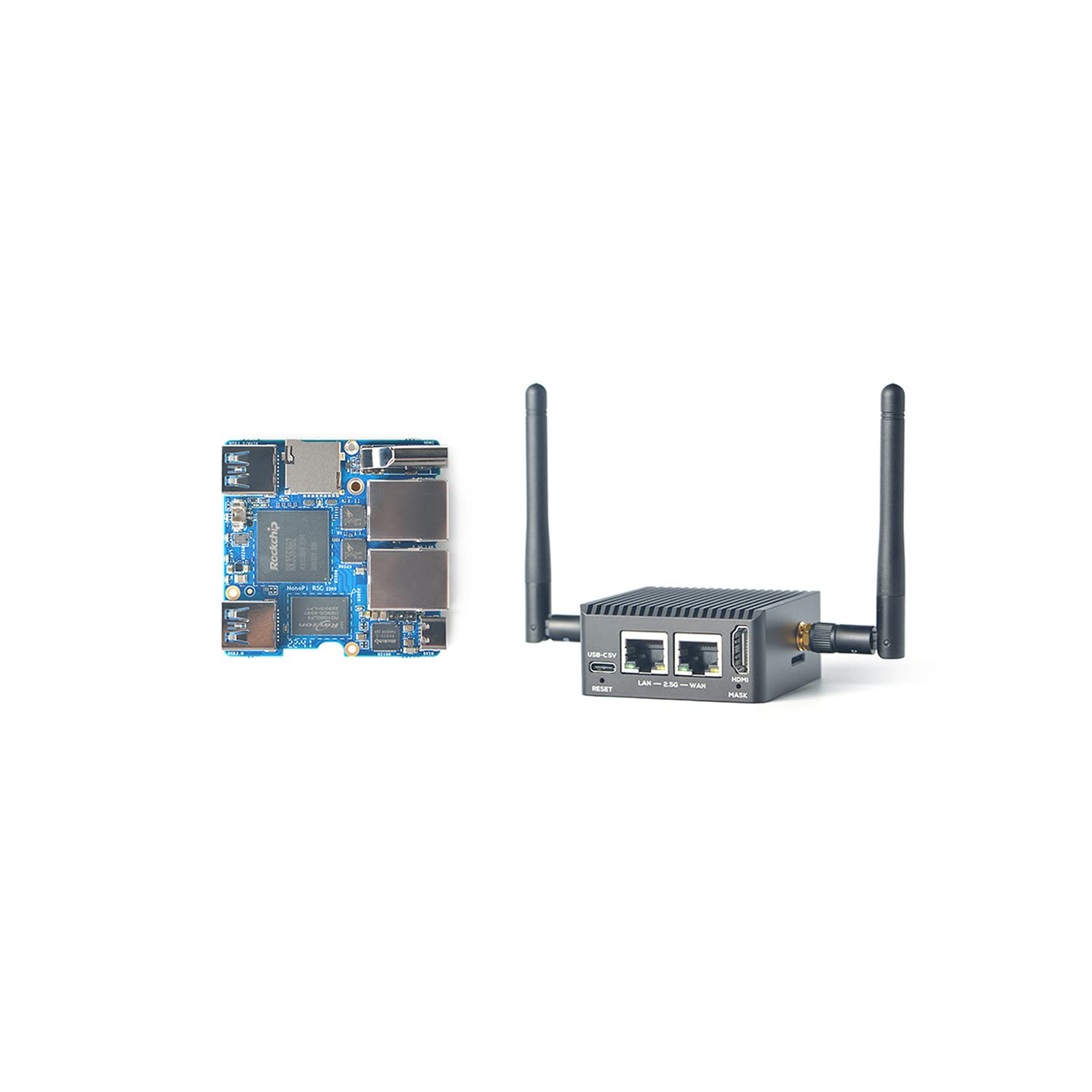

Nanopi R5C Mini WiFi Router OpenWRT with Dual PCIe 2.5Gbps Ethernet M.2 WiFi Bluetooth Ports 4GB LPDDR4X RAM Based in Rockchip RK3568B2 Soc for IOT NAS Smart Home Gateway (with M.2 WiFi Module)

About this item [WIRELESS MOBILE MINI TRAVEL ROUTER] Nanopi R5C Mini Wifi Router Adopt Rockchip RK3568B2 Soc, with 4GB LPDDR4x RAM and 32GB eMMC; CPU: Quad-core ARM Cortex-A55 CPU, up to 2.0GHz; GPU: Mali-G52 1-Core-2EE, supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile; NPU: Support 0.8T. [OPEN SOURCE and Programmable] It can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home gateways, and more. It can also be used as a command line mode for geeks. [Dual PCIe 2.5G GBPS ETHERNET PORTS] The NanoPi R5C Mini Router has dual PCIe 2.5Gbps Ethernet ports; M.2 WiFi(RTL8822CE) support 802.11 a/b/g/n/ac protocol,TX rate is 276Mbps,RX rate is 156Mbps. [LARGER EXTENSIBILITY & Interface] NanoPi R5C Router supports M.2 WiFi and Bluetooth Module, with M.2 Key E: PCIe2.1 x1, USB 2.0 x1 Ports；microSD: support UHS-I; USB: two USB 3.2 Gen 1 Type-A ports; Debug: one Debug UART, 3 Pin 2.54mm header, 3.3V level ;1 x HDMI output interface; LEDs: 4 x GPIO Controlled LED (SYS, WAN, LAN, WL). [OS/Software] NanoPi R5C Portable Router Running Android, FriendlyWrt 22.03(64-bit), Debian Buster Desktop (64-bit), FriendlyCore Focal Lite(Base on Ubuntu 20.04), Buildroot; Kernel version: Linux-5.10-LTS/U-boot-2017.09. [4K Video Decoders and Encoders] NanoPi R5C mini portable travel Router support 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder. [USER MANUAL] WiKi:”https://wiki.friendlyelec.com/wiki/index.php/NanoPi_R5C”. Pls feel free to email us to get the Datasheet or any questions of this module after you purchased it. How to email us? Click ”forum.youyeetoo.com/” and ask a question. The NanoPi R5C (as “R5C”) is an open-sourced mini IoT gateway device with two 2.5G, designed.It is integrated with a Rockchip RK3568B2 CPU, 2GB/4GB LPDDR4x RAM and 32GB eMMC flash. It supports booting with TF cards and works with operating systems such as FriendlyWrt etc. The NanoPi R5C Wifi Router has rich hardware resources with a compact size of 58 x 58 mm. FriendlyElec has released a carefully-designed custom CNC housing for it. It has one HDMI port. It works with Android, Ubuntu Desktop and Buildroot etc and works with headless systems as well. The NanoPi R5C Mini Wifi Router has one M.2 E-Key port, two USB 3.2 Gen 1 ports. It is an ideal portable drive for saving images and videos.It supports decoding 4K60p H.265/H.264 formatted videos. All in all, the NanoPi R5C Mini Wifi Router is a board featured with multiple Ethernet ports, light NAS and video playing. It is a cannot-miss platform with infinite possibilities for geeks, fans and developers. Product information Product Dimensions 2.48 x 2.48 x 1.18 inches Item Weight 7.3 ounces ASIN B0BNNP5RNT Item model number Nanopi R5C 4GB Router & M.2 WiFi Moudule Customer Reviews 3.6 3.6 out of 5 stars 4 ratings 3.6 out of 5 stars Best Sellers Rank #237,190 in Electronics (See Top 100 in Electronics) #1,427 in Computer Routers Date First Available November 30, 2022 Manufacturer WayPonDEV Country of Origin China Warranty & Support Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
