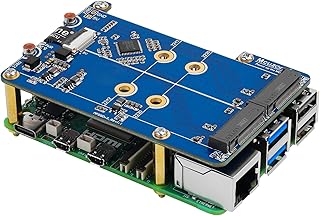

MPS2280D NVMe to PCIe Adapter for Raspberry PI 5 PCIE to Dual NVME SSD HAT Expansion Board Support 2280/2242/2230 Metal Case

About this item Designed for Raspberry Pi 5: Drocoge MPS2280D NVMe to PCIe Adapter is specifically designed for the Raspberry Pi 5, perfectly matching its size and interface. It brings more storage options to Raspberry Pi users. Dual NVMe SSD Expansion: Using a PCIe switch, it splits a single PCIe interface into two, supporting the connection of two NVMe SSDs. It is compatible with various sizes of SSDs, including 2230, 2242, and 2280 (default soldered 2280 standoff), offering larger storage space and faster data transfer. Stable Power Management: The product reserves a 2Pin 2.54mm pitch socket for an auxiliary power connection to ensure stable power supply. Although the Raspberry Pi 5’s PCIe interface only supports 1x Gen2 mode, the power consumption is significantly reduced in practice, ensuring stable operation of the device. Compact Design: With dimensions of 56x86mm, it is slightly longer than the Raspberry Pi 5, but the design is rational and does not interfere with the use of the Raspberry Pi 5. The 40Pin position is slotted to ensure no interference with other connections. For Storage Expansion Only: MPS2280D Adapter is solely for storage expansion and does not support booting from the SSD. It is designed for users who need large storage capacity, suitable for file storage, data backup, and other scenarios. Product Description MPS2280D PCIE to Dual NVME SSD HAT Expansion Board for Raspberry PI 5 How to install the Cable/wire? As soon as I try to reformat my nvme, the nvme looses connection. Can detect but appearing as 0. Why? Since you still could detect the SSD that means our hardware is working. You could format your SSD on Computer or boot from SD card and run gparted with RPi OS(sudo apt install gparted). If you need help please offer more detail. Are there any more detailed instructions? wiki.mcuzone.com Comparison of several raspberry development boards MPS2280D NVMe to PCIe Add to Cart PCIe TO M.2 HAT+ Add to Cart PCIe TO M.2 Board (C) Add to Cart PCIe TO USB 3.2 Gen1 HAT+ Add to Cart + Heat Sink Add to Cart RS485 CAN HAT Add to Cart MCP23017 IO Board Buying Options Customer Reviews 3.4 out of 5 stars 10 4.5 out of 5 stars 2 — — — 5.0 out of 5 stars 1 — Price $26.99 $26 . 99 $15.35 $15 . 35 $26.99 $26 . 99 $26.85 $26 . 85 $34.99 $34 . 99 $16.29 $16 . 29 — Model MPS2280D NVMe to PCIe PCIe TO M.2 HAT+ PCIe TO M.2 Board (C) PCIe TO USB 3.2 Gen1 HAT+ PCIe to USB 3.2 Gen1,Heat Sink RS485 CAN HAT MCP23017 IO Expansion Board Development board type MPS2280D NVMe to PCIe PCIe to M.2 PCIe to M.2 PCIe to USB 3.2 Gen1 PCIe to USB 3.2 Gen1 RS485 CAN HAT IO Expansion Board Suitable Raspberry Pi 5 Raspberry Pi 5 Raspberry Pi 5 Raspberry Pi 5 Raspberry Pi 5 Raspberry Pi 5 Raspberry Pi 5 Interface 40-pin NVME protocol M.2 interface NVME protocol M.2 interface 4 USB interfaces 4 USB interfaces Raspberry Pi 40PIN GPIO I2C，PH2.0 terminals and pads Installation location HAT HAT+ Side HAT+ HAT+ HAT / The way to access PI5 40PIN 16 PIN Line 16 PIN Line 16 PIN Line 16 PIN Line Raspberry Pi 40PIN GPIO / Other remarks / / with support bottom plate / with Heat Sink / / Illustrate External Dual SSD 2230/2242/2260/2280,SSD to PI5 2230/2242 M.2 Gen2/3 SSD – PI5 access peripheral equipment access peripheral equipment get long-distant communication modify communication address Product information Product Dimensions 3.39 x 3.39 x 3.39 inches Item Weight 1.44 ounces ASIN B0D5R57BWW Customer Reviews 3.4 3.4 out of 5 stars 10 ratings 3.4 out of 5 stars Best Sellers Rank #7,202 in Single Board Computers (Computers & Accessories) Date First Available May 31, 2024 Manufacturer Drocoge Country of Origin China Warranty & Support Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
