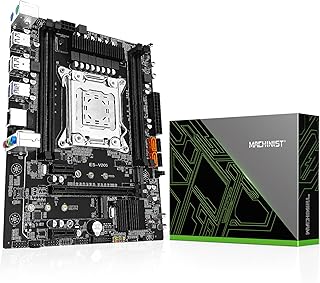

About this item Intel LGA 2011-3 socket: This server motherboard supports Intel 5th/6th generation Core i7 processors and XEON E5 V3/V4 series processors. Not compatible with LGA 2011 CPUs. (Eg. Core i7-5960K, Core i7-6850K, Xeon E5-2667 V3, Xeon E5-4669 V3, Xeon E5-2689 V4) 4 * DDR4 slots: The memory slots of this LGA 2011-3 motherboard are dual channel design, compatible with ECC and non-ECC memory. The effective frequency is 2133/2400 MHz, and the maximum capacity is 4*16GB Dual M.2 slots: This micro ATX motherboard is equipped with flash NVME M.2 (PCIe 3.0 X4 bandwidth) and SATA M.2 (SATA 6Gbps) slots, which can be used as needed 3 PCIe expansion slots: Including 1 PCIe 3.0 X16 slot and 2 PCIe 2.0 X1 slots. The transmission rate of each channel is 8Gbps, and the rate of X16 slot can reach 128Gbps. The X1 slot can also be used to expand the network card, sound card and hard disk Other expansion interfaces: Including 2 * PS/2 interface, 4 * USB 2.0 slots, 2 * USB 3.0 slots, 2 * SATA 3.0 slots, and 2 * SATA 2.0 slots Other interfaces: 1* Gigabit LAN, 1 * 5.1 channel audio jacks, 2 * 3PIN SFAN, 1 * 4PIN SFAN, and 1*4PIN CFAN. Note: If you need the motherboard to enter the BIOS, please press the “Del” key continuously after pressing the startup key. Please do not wait until the startup LOGO screen appears on the computer screen before operating, because it is already too late Common problem: “FF” code appears on the diagnostic card, which may be caused by incompatible CPU, foreign objects on CPU pins or improper power connection. The metal fingers of the CPU can be wiped with an eraser to ensure cleanliness. If the codes “b7”, “b9”, “53” and “b0” appear, this is a problem that the motherboard does not detect the memory. You can remove and insert the memory several times or wipe the metal metal fingers of the memory with an eraser to solve it The package includes: 1*CPU fan bracket, 1*SATA cable, 1*I/O baffle, 1*motherboard. Manuals are not included in the package. All the information of this product can be found in the description and pictures. If you don’t know where to download the driver, it is recommended to use the win 10 system, which can help you solve all driver problems Product Description MACHINIST E5 V205 server computer motherboard This is a very cost-effective server motherboard, with dual M.2 slots and dual-channel DDR4, PCIE 3.0 standard. Common problem: “FF” code appears on the diagnostic card, which may be caused by incompatible CPU, foreign objects on CPU pins or improper power connection. The metal fingers of the CPU can be wiped with an eraser to ensure cleanliness. If the codes “b7”, “b9”, “53” and “b0” appear, this is a problem that the motherboard does not detect the memory. You can remove and insert the memory several times or wipe the metal fingers of the memory with an eraser to solve it. Note: If you need the motherboard to enter the BIOS, please press the “Del” key continuously after pressing the startup key. Please do not wait until the startup LOGO screen appears on the computer screen before operating, because it is already too late. The PCIe X1 expansion slot can be used to install expansion plug-ins such as sound cards and network cards. Note: NVME M.2 and SATA M.2 are two different hard drives, please do not confuse them. This comprehensive m-ATX motherboard can be used for games, audio and video, home, office, design, workstation, server, mining, scientific computing, 3D modeling, video rendering, and other operations. X99 E5 V205 Motherboard Specification Main chipset Intel H81 CPU socket Intel LGA 2011-V3 (Support Intel i7 XEON E5 V3/V4) Memory slot DDR4 ECC dual channel (Support 3200/2800/2400/2133 MHz) Maximum memory 64GB PCI-E standard PCI-E 3.0 PCI-E slot 1 * PCIe 3.0 X16 slots and 2 * PCIe 3.0 X1 slots. Storage interface 2 * SATA3.0, 2 * SATA2.0, 1 * M.2 NVME and 1 * M.2 SATA. Sort of USB supported 2 * USB3.0, 4 * USB2.0 Onboard LAN 1 * Gigabit LAN Power connector 24pin + 8pin Motherboard type M-ATX Overclock Not support Material 8-layer PCB Motherboard size 235mm*185 mm Other interfaces 2 * PS/2 interface, 4.1 channel audio Package list 1*CPU fan bracket, 1*SATA cable, 1*I/O baffle, and 1*motherboard MR9S motherboard MR9A PRO MAX motherboard E5 MR9A Motherboard X99 K9 Motherboard E5 RS9 Motherboard X99 G7 Motherboard Buying Options Add to Cart Add to Cart Add to Cart Add to Cart Buying Options Customer Reviews 3.7 out of 5 stars 191 3.7 out of 5 stars 191 3.7 out of 5 stars 191 3.7 out of 5 stars 191 3.7 out of 5 stars 191 3.7 out of 5 stars 191 Price — $107.34 $107 . 34 $100.69 $100 . 69 $94.99 $94 . 99 $80.74 $80 . 74 — Chipset Type Intel B85 Intel B85 Intel B85 Intel C612 Intel B85/Q87 Intel C226 Available 139.99 125.99 119.99 119.99 96.99 103.99 Memory Slot DDR4*8 Four channels( 2133/2666/3200MHz) DDR4*4 Four channels( 2133/2666/3200MHz) DDR4*4 Four channels( 2133/2666/3200MHz) DDR4*4 Four channels( 2133/2666/3200MHz) DDR4*4 Four channels( 2133/2666/3200MHz) DDR3*4 Dual channels( 2133/2666/3200MHz) RAM Memory Maximum Size DDR4 ECC 256GB DDR4 ECC 128GB DDR4 ECC 128GB DDR4 ECC 64GB DDR4 ECC 64GB DDR3 ECC 64GB WiFi Wi-Fi M.2 Wi-Fi M.2 Wi-Fi M.2 Wi-Fi M.2 Wi-Fi M.2 None Extension Ports 2*PCIe 3.0 X16, 1*PCIe 3.0 X4 and 2*PCIe 3.0 X1 3*PCIe 3.0 X16, 1*PCIe 3.0 X4 and 1*PCIe 3.0 X1 2*PCIe 3.0 X16, 1*PCIe X4, 1*PCIe X1 1*PCIe 3.0 X16, 1*PCIe X1 1*PCIe 3.0 X16, 2*PCIe X1 1*PCIe 3.0 X16, 2*PCIe X1 Number of SATA 4 * SATA3.0, 2 * SATA2.0 4*SATA3.0, 2*SATA2.0 4*SATA3.0, 2*SATA2.0 8*SATA 3.0 4*SATA3.0 4 * SATA 2.0 M.2 Interface NVME M.2, SATA M.2 NVME M.2, SATA M.2 NVME M.2, SATA M.2 Dual NVME M.2 NVME M.2, SATA M.2 NVME M.2, SATA M.2 Overclocking ✓ ✓ Model ATX ATX ATX Micro ATX Micro ATX Micro ATX Product information Product Dimensions 8.46 x 7.48 x 1.5 inches Item Weight 1.76 pounds Manufacturer MACHINIST ASIN B0C6Y33XLX Country of Origin China Item model number X99-V203 Batteries 1 CR2032 batteries required. (included) Customer Reviews 3.7 3.7 out of 5 stars 191 ratings 3.7 out of 5 stars Best Sellers Rank #1,884 in Computer Motherboards Date First Available June 2, 2023 Warranty & Support Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
