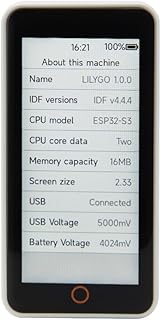

About this item 【Product Characteristics】The T-Display S3 Pro mainly uses a larger 2.33-inch screen and adds the SY6970 chip for mobile OTG 【Product Specification】The T-Display S3 Pro housing is ABS and the camera module is extended to use the built-in module through POGO pin. The default built-in 3.8V 470mA battery 【Product Advantages】The ambient light and proximity sensor at the top of the screen, two integrated QWIIC ports, and a battery power switch. Internally, optional MPU9250 IMU modules are also available 【Attention】The interface shown in the picture is an example UI routine, not a feature of the product. The specific in car functions are subject to detailed descriptions 【Github】github.com/Xinyuan-LilyGO/T-Display-S3-Pro Product Description T-Display-S3 Pro Specifications T-Display-S3-Pro is the upgraded version of T-Display-S3. The main thing is the use of a larger screen 2.33-inch screen and the addition of the chip SY6970 for phone OTG. Continuing the way of the T-display S3, the case is ABS, and there is the expansion of the camera module through POGOpin for the use of a built-in module. Default built-in 3.8V 470ma battery. Ambient light and proximity sensors on the top of the screen, two integrated QWIIC ports, and a battery power switch. An optional MPU9250 IMU module is also available internally. Note: The interface shown in the picture is a sample UI routine, not a function that this product has. Specific on-board features are subject to detailed descriptions. Github : github.com/Xinyuan-LilyGO/T-Display-S3-Pro PIN MAP FAQ The board uses USB as the JTAG upload port. When printing serial port information on USB_CDC_ON_BOOT configuration needs to be turned on. If the port cannot be found when uploading the program or the USB has been used for other functions, the port does not appear. Please enter the upload mode manually.Connect the board via the USB cable Press and hold the BOOT button , While still pressing the BOOT button, press RST Release the RST Release the BOOT button Upload sketch If the above is invalid, burn the binary file to check whether the hardware is normal The OTG external power supply function requires turning on the PMU OTG enablement. If the USB input is connected and the OTG is set to output, the battery will not be charged. Turning the physical switch to OFF will completely disconnect the battery from the motherboard. When charging is required, turn the switch to ON. SHIPPING LIST 1 X T-Display S3 pro 2 X Pin(13pin ) Product information Technical Details Collapse all Summary Wireless Type Bluetooth Other Technical Details Brand LILYGO Series T-Display-S3-Pro Processor Brand Espressif Number of Processors 1 Manufacturer LILYGO ASIN B0CWV437MD Country of Origin China Date First Available March 1, 2024 Additional Information Customer Reviews 3.0 3.0 out of 5 stars 1 rating 3.0 out of 5 stars Best Sellers Rank #1,900 in Single Board Computers (Computers & Accessories) Warranty & Support Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is “dead on arrival,” arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test “dead on arrival” returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
