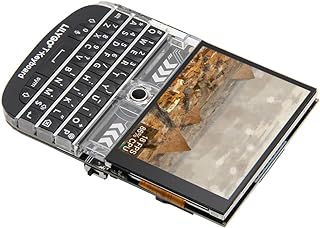

LILYGO T-Deck ESP32-S3 LoRa BLE WiFi TTGO Module LoRaWAN Long Range Development Board with 2.8 inch LCD Display (433MHz)

Product Description Product Display T-Deck Specifications For more programming information about the product, please refer to Github: github.com/Xinyuan-LilyGO/T-Deck T-Deck can’t upload any sketch，Please enter the upload mode manually. Connect the board via the USB cable Press and hold the BOOT button , While still pressing the BOOT(On the trackball above the keyboard, press down) button Press RST button Release the RST button Release the BOOT button Upload sketch Product Pin Diagram Tips: If a microphone is used, the GPIOO button cannot be used If the sketch cannot be uploaded, then you need to press down the middle of the trackball, and then insert the USB, this means the chip is in the download mode, and then click to upload the sketch. T-Keyboard the programming and burning interface of ESP32C3 is located at the 6Pin header on the side of the RST button, and the order starts from the top of the RST button, which are 3V3, GND, RST, BOOT, RX, TX, You need to connect USB TO TTL externally to burn the keyboard firmware. For TTL without automatic download circuit, before powering on, short-circuit the BOOT Pin and GND, and then power on. At this time, T-Keyboard will enter the download mode. After the burning is completed, you need to disconnect GND and BOOT before running the program. Shipping List 1 X T-Deck(Black Keyboard） 1 X Pin (6pin) 1 X Power cable 1 X 433/868/915MHz LTE antenna Shipping List 1 X T-Deck(White Keyboard） 1 X Pin (6pin) 1 X Power cable 1 X 915MHz LTE antenna Product information Technical Details Collapse all Summary Standing screen display size ‎2.8 Inches Wireless Type ‎2.4 GHz Radio Frequency Number of USB 2.0 Ports ‎1 Other Technical Details Brand ‎LILYGO Series ‎LILYGO T-Deck ESP32-S3 LoRa BLE WiFi TTGO Module LoRaWAN Long Range Development Board Item model number ‎T-Deck Operating System ‎Micropython Item Weight ‎3.17 ounces Product Dimensions ‎3.94 x 0.43 x 5.9 inches Item Dimensions LxWxH ‎3.94 x 0.43 x 5.9 inches Processor Brand ‎Espressif Number of Processors ‎2 Manufacturer ‎LILYGO ASIN ‎B0CCDDRJ4Y Date First Available ‎December 11, 2024 Additional Information Customer Reviews 4.4 4.4 out of 5 stars 3 ratings 4.4 out of 5 stars Best Sellers Rank #4,119 in Single Board Computers (Computers & Accessories) Warranty & Support Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is “dead on arrival,” arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test “dead on arrival” returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
