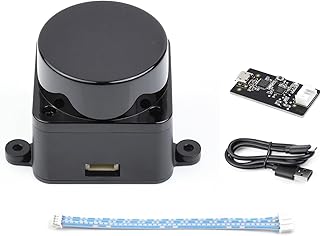

LDROBOT D500 Lidar Kit DTOF Outdoor Robot SLAM Navigation Scanning Laser Radar Sensor Support ROS1 ROS2 D300 Lidar Kit Upgrade

High ranging accuracy at close range, with a mean error of ±10mm over a distance of 0.03 to 0.5m It adopts a compact structure design, stylish appearance, smaller size, lower power consumption, and can be embedded inside the robot to reduce its size and improve its passability Stable performance with a lifetime of up to 10,000 hours Brushless Motor, Quiet Without Friction, The Lifetime Can Reach 10000+ Hours. Rotates clockwise in the ranging core to achieve 360-degree scanning and ranging of the surrounding environment, thus obtaining the contour map of the surrounding environment and the point cloud information of the location of obstacles › See more product details Product Description Product Description The STL-19P consists mainly of a laser ranging core, a wireless power transmission unit, a wireless communication unit, an angle measuring unit, a motor drive unit and a mechanical housing. The product is mainly suitable for the navigation and obstacle avoidance of robots (e.g. floor mopping robots and service robots) by performing a 360° scan of the indoor layout and building a map so that a walking path can be planned. It is also suitable for robotics education and research, etc. Ranging accuracy ±10mm*0.03-0.5m, STD 2mm； ±20mm*0.5-2m, STD 4mm； ±30mm*2m-12m, STD 15mm （white target with 80% reflectivity）； ±30mm*2m-8m, STD 15mm （black target with 4% reflectivity）； Ranging frequency 5000HZ Angular resolution Typical value 0.72°@10Hz Working temperature -10°–45° Machine dimension 54.00*46.29*35.0 (L*W*H) Communication interface UART @ 230400 LDROBOT D500 RPLIDAR C1 RPLIDAR A1 Livox Mid-360 Unitree 4DLiDAR L1 RM Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 2 — 3.5 out of 5 stars 3 5.0 out of 5 stars 2 — Price $79.00 $79 . 00 $69.00 $69 . 00 $99.00 $99 . 00 $838.00 $838 . 00 $329.00 $329 . 00 Measuring Range 0.03-12Meters 0.05-12Meters 0.15-12Meters 0.1-40Meters 0.05-30Meters Sampling Frequency 5KHZ 5KHZ 8KHZ 200KHZ 21.6KHZ Demensions 54.00*46.29*35.0mm 55.6 x 59.8 x 41.3mm 96.8 × 70.3 × 55.0mm 65×65×60 mm 75*75*65mm Communication interface UART USB UART USB UART USB Ethernet Serial Port Weight 70g 110g 170g 265g 230g Product dimensions The laser emission and reception in the ranging unit of the STL-19P requires an optical window, which needs to be exposed in the structure. The partial occlusion of this window by external systems will affect the ranging performance of the LiDAR to some extent. The diagram below shows the optical window dimensions (in mm). DTOF time-of-flight ranging technology Lsing TOF (Time of Fight) time-of-flight ranging technology Distance measurement based on laser pulse time of flight TOF LIDAR sensor no matter in measurement accuracy, measurement distance, resalution It also has great advantages in anti-interference ability. stability, and response speed. It can meet the functianal requirements of various robot navigation, map building, obstacle avoidance, etc. High accuracy of short-distance ranging Precise Mapping The average eeror within 0.03-0.5mis within ±10mm Up to 12m radius ranging Longer ranging range, which con percehve environmental information in a longer range Guaranteed the ability of the robat to cruise and map in a large area 360° all-round laser scanning Rotating clockwise at the ranging core, it can realize 360-de- gree omni-directional scanning and ranging detection of the surrounding environment, so as to obtain the contour map of the surrounding environment and the point cloud information of the position of obstacles Anti glare Based on the principle of TOF, the first-class filter processing technology can effectively avaid Strong light interference, can resist 60000Lux strong light environment it can realize indoor and outdoor high-frequency and high-precision distance measurement and precise mapping Exquisite and compact, stylish appearance With compact structure design, stylish appeorance, smalier size, lower poweer consumption It can be buit into the machine to reduce the size of the whole mochine and improve the passability of the robot Application Scenario Product information Technical Details Item Weight ‎5.6 ounces Package Dimensions ‎3.94 x 3.54 x 2.76 inches Country of Origin ‎China Warranty ‎One year warranty Additional Information ASIN B0DDKXQ23R Customer Reviews 4.5 4.5 out of 5 stars 2 ratings 4.5 out of 5 stars Best Sellers Rank #4,698 in Single Board Computers (Computers & Accessories) Date First Available August 19, 2024 Warranty & Support Amazon.com Return Policy:Amazon.com Voluntary 30-Day Return Guarantee: You can return many items you have purchased within 30 days following delivery of the item to you. Our Voluntary 30-Day Return Guarantee does not affect your legal right of withdrawal in any way. You can find out more about the exceptions and conditions here. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
