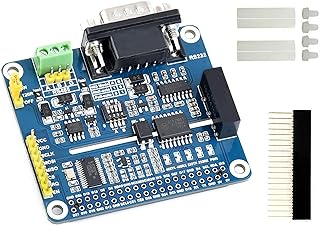

Isolated RS485 RS232 Expansion HAT Board for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero 2 W/Zero 2 WH, SPI Control Onboard Protection Circuits

Isolated RS485 RS232 Expansion HAT for Raspberry Pi. Based on Raspberry Pi 40pin GPIO interface, suitable for Raspberry Pi series motherboards. Using SC16IS752 and SP3485, SP3232 multi-chip combination scheme, can realize SPI to RS485, RS232, the communication rate is up to 921600bps. Support RS485 and RS232.RS232: full-duplex communication, SP3232 transceiver; RS485: semi/full-automatic communication, SP3485 transceiver. RS485 supports manual or automatic sending and receiving of data, which can be set by DIP switch. RS485 onboard resettable fuse and protection diode can ensure stable output of current and voltage, prevent overcurrent and overvoltage, and improve shock resistance. Onboard TVS (transient voltage suppression tube), which can effectively suppress the surge voltage and transient peak voltage in the circuit, and protect against lightning and static electricity. Onboard power supply and serial port transceiver indicators, easy to check the module power supply and communication status Breakout SPI control pins, for connecting with Arduino and other host control boards. Product information Technical Details Collapse all Other Technical Details Brand ‎waveshare Item model number ‎RS485+232 Expansion HAT Board Item Weight ‎1.06 ounces Product Dimensions ‎2.56 x 2.22 x 0.59 inches Item Dimensions LxWxH ‎2.56 x 2.22 x 0.59 inches Color ‎RS485 RS232 Expansion HAT Manufacturer ‎Waveshare ASIN ‎B09TYP8G3M Country of Origin ‎China Date First Available ‎March 6, 2022 Additional Information Best Sellers Rank #12,988 in Single Board Computers (Computers & Accessories) Warranty & Support Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is “dead on arrival,” arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test “dead on arrival” returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
