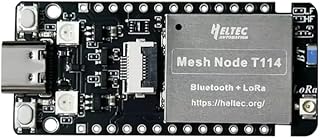

About this item MCU nRF52840 (Bluetooth), LoRa chipset SX1262. Powerful display function (optional), onboard 1.14 inch TFT-LCD display contains 135(H)RGB x240(V) dots and can display up to 262k colors. Low power consumption, 11 uA in deep sleep. Powerful display function, onboard 1.9-inch TFT-LCD display contains 170 (RGB)X320 dots and can display up to 262k colors. Operation condition: -20 ~ 70℃, 90%RH(No condensing). Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures. Compatible with Arduino, we provide development frameworks and libraries. Various Interfaces: 1.25*2P LiPo connector, 1.25*2P Solar panel connector, 1.25*8P GNSS module connector, which greatly increase the extensibility of the board. Product Description Summary Mesh Node T114 is a Low Power Consumption development board based on nRF52840 and SX1262, supports LoRa and Bluetooth 5.0 . which integrated various power interfaces (5V USB, lithium battery and solar panel) optional 1.14 inch TFT display and GPS module as accessories, and has powerful long-distance communication capabilities, scalability, and low power design. With Heltec nRF52 development environment and libraries. you can use it for LoRa/LoRaWAN development work, and also use it to run some open source projects, such as Meshtastic. Mesh Node T114 has been upgraded to ReV2.0 version with the following changes made : The circuit board was changed from 4 layers to 6 layers so that both the RF part and the crystal oscillator part can obtain a more complete ground. The circuit was changed from lead-free to immersion gold process, which is more friendly to signal transmission. The position of some components was adjusted. The RF path was optimized according to the six-layer board structure. The direction of the 2.4GHz Bluetooth antenna and IPEX LoRa antenna interface was changed to make them farther away. The data transmission can sent long data packets on meshtastic. Low Power Characteristcs Main Features MCU nRF52840 (Bluetooth), LoRa chipset SX1262. Powerful display function (optional), onboard 1.14 inch TFT-LCD display contains 135(H)RGB x240(V) dots and can display up to 262k colors. Low power consumption, 11 uA in deep sleep. Powerful display function, onboard 1.9-inch TFT-LCD display contains 170 (RGB)X320 dots and can display up to 262k colors. Operation condition: -20 ~ 70℃, 90%RH(No condensing). Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures. Compatible with Arduino, we provide development frameworks and libraries. Various Interfaces: 1.25*2P LiPo connector, 1.25*2P Solar panel connector, 1.25*8P GNSS module connector, which greatly increase the extensibility of the board. About GNSS Module Hardware Resources High light Low Power Consumption Meshtastic enter low power consumption mode, the current is only 23uA. Entering LoRaWAN deep sleep mode, the current is only 11uA. Powerful communication capabilit supports LoRa and Bluetooth 5.0. optional 1.14 inch TFT display and GPS module as accessories. Plastic support plate A transparent plastic support platform is installed between the PCB and the monitor. Protect the electronic components of the circuit board and enhance its heat dissipation. Highly extensible Integrate multiple power interfaces, 5V USB, lithium battery, solar panel. Provid abundant pins and hardware resources. Specifications MCU nRF52840 LoRa Node Chip SX1262 Max. TX Power 21±1dBm Max. Receiving sensitivity -135dBm@SF12 BW=125KHz Bluetooth Bluetooth LE: Bluetooth 5, Bluetooth mesh Hardware Resource USB 2.0, 4 * SPI, 2 * TWI, 2 * UART, 4 * PWM, QPSI, 12S, PDM, QDEC Etc. Memory 1M ROM; 256KB SRAM Interface Type-C USB; 2*1.25 lithium battery connector; 2*1.25 solar panel connector; LoRa ANT (IPEX1.0); 8*1.25 GPS module connector; 2*13*2.54 Header Pin. Battery 3~4.2V battery power supply and charge. Operating Temperature -20 ~ 70 ℃ Dimensions 50.80*22.86mm Electrical characteristics Deep Sleep: ~11uA; Tracker mode sleep: ~22uA; GPS OFF, TFT OFF: ~9mA; GPS OFF, TFT ON: ~20mA; GPS ON, TFT ON: ~51mA. Display onboard 1.14 inch TFT-LCD display Mesh Node T114 V2 Pin Map Mesh Node T114 Docs & Resource Packing list The default packing list without selecting any accessories is as follows: Mesh Node T114 * 1 LoRa Antenna * 1 SH1.25×2 Battery Connector * 2 2.54 *13 Header Pin * 2 L76K GNSS (Available when GPS selected) * 1 Protect Shell and Transfer LoRa antenna (Available when Shell selected) * 1 Product information Technical Details Collapse all Summary Wireless Type Bluetooth Other Technical Details Brand Heltec Automation Series T114 Item model number T114 Board Item Weight 2.24 ounces Product Dimensions 2 x 0.9 x 0.38 inches Item Dimensions LxWxH 2 x 0.9 x 0.38 inches Processor Brand Nordic Number of Processors 1 Manufacturer Heltec Automation ASIN B0DDL8NZ6K Country of Origin China Date First Available August 19, 2024 Additional Information Customer Reviews 5.0 5.0 out of 5 stars 1 rating 5.0 out of 5 stars Best Sellers Rank #7,606 in Single Board Computers (Computers & Accessories) Warranty & Support Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is “dead on arrival,” arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test “dead on arrival” returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
