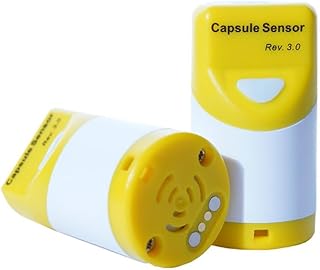

Heltec Meshtastic Capsule Sensor V3 902～928MHz LoRa LoRaWAN ESP32-S3 SX1262 Chip with GNSS Wi-Fi BLE Temperature Humidity Sensor Thermometer Barometer Hygrometer (3-Axis)

Product Description Summary Capsule Sensor V3 is a tiny portable LoRa/LoRaWAN device based on ESP32-S3 and SX1262. Modular design allows it to adapt to different sensors, so you can easily build applications without being an expert in IoT. Thanks to WirelessBoot technology, Capsule Sensor V3 is small, stylish, waterproof, and has a 250mA rechargeable battery, making it perfect for complex environments. Whether you want to build your applications or run open-source programs like Meshtastic, Capsule Sensor V3 is a great choice. The Capsule Sensor accommodates all your belongings, including guitars, pianos, other musical instruments, cigar humidors, wine cellars, incubators, greenhouses, art, family heirlooms, refrigerators, and freezers, benefiting from meticulous and precise monitoring. Usage steps Main Features ESP32-S3 + SX1262. LED indicator light. Meshtastic project compatible(It is recommended to use with power bank or mobile phone). High strength plastic, IP65 waterproof. Wireless communication method include Wi-Fi, Bluetooth and LoRa. Built in 250mAh rechargeable battery, magnetic suction charging port. Built in LoRa and Wi-Fi/BLE antennas, stylish appearance, compact and light. Re-development can be done through Arduino, PlatformIO, etc. Support Heltec Wireless Boot system, download firmware, exchange information, and print logs through Wi-Fi. Modular design, with a BTB interface reserved at the bottom, capable of connecting and replacing different sensors. General Specifications MCU ESP32-S3FN8 LoRa Chip SX1262 WiFi IEEE 802.11 b/g/n 2.4GHz Bluetooth Bluetooth LE， Bluetooth 5， Bluetooth mesh LoRa Frequency 863～870MHz, 902～928MHz, 470～510MHz Operating Temperature -20~60℃ Max. Receiving. sensitivity -135dBm Power Supply 3.7V lithium battery, 250mAh Battery life Over 1 Year (typical conditions) Charging 5V, Magnetic suction 2P-2.54mm Operating Humidity 10%~90%RH(Non Condensing) Max. LoRa TX Power 21± 1dBm Protection grade IP65 Wireless Range Over 6 KM (line of sight, ideal conditions) Sensor Specifications GNSS Quectel_L76K (＜1m, L1/L5) Temperature&Humidity GXHTV3 (±0.5℃/±5%RH) 3-Axis DA217 (±1g) Barometic Pressure BMP280 (±1hPa/±1℃) High light Easy Scan&Setup Set up our free app (iOS or Android) easily for a digital summary of current conditions for your connected Heltec devices. Smart app control and display to enhance youroverall user experience. Explore deeper with integrated data logging and graphing, featuring 7 days of sensor storage and unlimited in-app storage. Gain valuable insights from comprehensive hourly, daily, and weekly updates. WirelessBoot Wireless Boot is a boot loader system for ESP32 MCU. You can download firmware, exchange information, and print logs through WiFi. Therefor, devices no longer requires a USB-UART bridge, which can reduce the hardware cost of the system and reduce device size. The Capsule Sensor V3 had already includes the WirelessBoot system by default. Modular design A BTB interface reserved at the bottom, capable of connecting and replacing different sensors. Meet with your different application scenarios and needs. Heltec LoRaWAN gateway Capsule Sensor V3 is compatible with almost all LoRaWAN gateways on the market. You can also choose a Heltec LoRaWAN gateway. Once the gateway is connected via WiFi or Ethernet, capsule devices near you can be used anywhere via the internet. Whether you’re monitoring one sensor or multiple sensors, there’s real-time updates, complete data history, and alerts that you can use at work, on vacation, or anywhere. * To use its LoRaWAN function and achieve cloud/APP platform management, you may need a LoRaWAN gateway. Learn more about the Plug&Play series products to make your application deployment more convenient Docs & Resource Packing list The default packing list without selecting any accessories is as follows: CapSule Sensor V3 * 1 Charging Cable * 1 Lanyard * 1 Product information Technical Details Item Weight ‎2.12 ounces Manufacturer ‎Heltec Automation ASIN ‎B0DJXSYFL8 Country of Origin ‎China Date First Available ‎October 12, 2024 Additional Information Best Sellers Rank #4,526 in Single Board Computers (Computers & Accessories) Feedback Would you like to tell us about a lower price?
