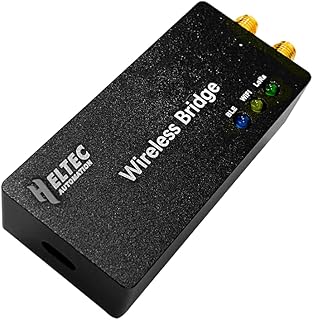

Product Description Summary WiFi and Bluetooth have been widely used in various scenarios, especially in terms of communication speed, which have obvious advantages. Almost all mobile phones now integrate WiFi and Bluetooth functions, but the communication distance is their shortcoming. Is there any hardware that can combine the long-distance advantages of LoRa with the advantages of WiFi/Bluetooth? Wireless Bridge is such a product. Based on ESP32 and SX1276 chips, onboard 8M Byte SDRAM and 8M Byte FLASH, WiFi and Bluetooth can work at the same time. It is a bridge that converts “WiFi/Bluetooth – LoRa” signals to each other. Main Features CE Certificate; Microprocessor: ESP32 (dual-core 32-bit MCU + ULP core), with LoRa node chip SX1276; 8M Byte SDRAM and 8M Byte FLASH, these features will allow WiFi and BlueTooth to work at the same time. +5V DC Micro USB power input, with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures; SMA socket for LoRa, WiFi/BlueTooth antenna; Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing. Compatible with Arduino development environment; Specifications Master Chip ESP32-D0WDQ6 LoRa Chipset SX1276 USB to Serial Chip CP2102 Frequency 470~510MHz, 863~928MHz Max. TX Power 18d B ± 1d B Max. Receiving Sensitivity -134dBm Wi-Fi 802.11 b/g/n, up to 150Mbps Bluetooth Bluetooth V4.2 BR/EDR and Bluetooth LE sepcification Memory 8MB(64M-bits) SPI FLASH, internal 520KB SRAM, 8MB(64M-bits) PSRAM Battery 3.7V lithium battery power supply and charging Operating temperature -20 ~ 70 ℃ Dimensions 66(+10) x 30 x 15 mm Interface Micro USB*1; LoRa Antenna interface(SMA); 2.4G Antenna interface(SMA) Low Power Deep sleep 800μA Wireless Bridge Size High light Micro-USB Integrated CP2102 USB to serial port chip, convenient for program. High strength aluminum alloy shell Adopts high-strength aluminum alloy shell, compact and fashionable appearance, and the volume is only 66 (+10)x30x15mm. Packing list The default packing list without selecting any accessories is as follows: Wireless Bridge * 1 USB-Type C cable * 1 Glue Rod Antenna * 2 Product information ASIN B0D3X2CZRZ Best Sellers Rank #11,665 in Single Board Computers (Computers & Accessories) Date First Available May 11, 2024 Manufacturer Heltec Automation Country of Origin China Warranty & Support Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
