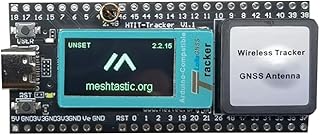

Heltec ESP32 LoRa Meshtastic Asset Wireless Tracker Development Board SX1262 Chip with Wi-Fi BLE GPS for Vehicle Bike Kids Pet Car Fitness Tracker (902-928MHz)

About this item ESP32-S3FN8+SX1262+UC6580 Chipset, supports Wi-Fi, LoRa, Bluetooth, GNSS. Low power design of dual-frequency multi-system based on 22nm technology. Supports L1 + L5/L2, supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures. Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching). Onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa and GNSS use. Onboard 0.96-inch 160*80 dot matrix LCD display, which can be used to display debugging information, battery power, and other information. Support the Arduino development environment. Product Description Summary Wireless Tracker is a development kit based on ESP32-S3FN8. It integrates both SX1262 and UC6580 to provide fast GNSS solution for IoT. It can track any object and then upload that data wirelessly by Wi-Fi, Bluetooth, LoRa. Wireless Tracker supports L1 + L5/L2, and supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning. It is perfectly compatible with Arduino, can be widely used in development such as bicycle sharing services, tracking pets or livestock, locating vehicles, tracking children, etc. Main Features ESP32-S3FN8+SX1262+UC6580 Chipset, supports Wi-Fi, LoRa, Bluetooth, GNSS. Low power design of dual-frequency multi-system based on 22nm technology. Supports L1 + L5/L2, supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures. Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching). Onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa and GNSS use. Onboard 0.96-inch 160*80 dot matrix LCD display, which can be used to display debugging information, battery power, and other information. Support the Arduino development environment. Specifications Master Chip ESP32-S3FN8 (Xtensa 32-bit lx7 dual core processor) LoRa Chipset SX1262 GNSS Chipset UC6580 Frequency 470~510MHz, 863~928MHz Max. TX Power 21±1dBm Max. Receiving Sensitivity -134dBm Wi-Fi 802.11 b/g/n, up to 150Mbps Bluetooth LE Bluetooth 5, Bluetooth mesh Hardware Resource 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc. Interface Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2*18*2.54 Header Pin Battery 3.7V lithium battery power supply and charging Operating Temperature -20 ~ 70 ℃ Dimensions 65.48 * 28 * 13.65mm Hardware Resources Wireless Tracker Pin Map High light Meshtastic network support Complete Meshtastic network support USB Type C The power supply, firmware download, and debugging interfaces adopt a more universal USB Type C interface, making development work more convenient. Intergrated UC6580 GNSS chip and antenna UC6580 is a L1+ L2/L5 GNSS chip, supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning. Onboard LCD Display The integrated LCD display can be used to show some information such as system status and parameters, making it convenient for users to directly use the entire development board for their own product design. Packing list The default packing list without selecting any accessories is as follows: Wireless Tracker * 1 Glue Rod Antenna * 1 SH1.25×2 Battery Connector * 1 Product information Technical Details Collapse all Summary Wireless Type ‎802.11bgn Other Technical Details Brand ‎Heltec Automation Item model number ‎902-928MHz Item Weight ‎2.08 ounces Product Dimensions ‎2.59 x 1.1 x 0.57 inches Item Dimensions LxWxH ‎2.59 x 1.1 x 0.57 inches Processor Brand ‎Espressif Number of Processors ‎1 Power Source ‎Battery Powered Manufacturer ‎Heltec Automation ASIN ‎B0D1QBSLKS Country of Origin ‎China Date First Available ‎April 15, 2024 Additional Information Customer Reviews 5.0 5.0 out of 5 stars 1 rating 5.0 out of 5 stars Best Sellers Rank #6,911 in Single Board Computers (Computers & Accessories) Warranty & Support Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is “dead on arrival,” arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test “dead on arrival” returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
