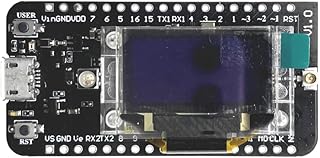

About this item Perfect Arduino-Compatible! CE and FCC certification; Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC 4000 series MCU (ARM Cortex M0+ Core) and SX1262; LoRaWAN 1.0.2 support; Ultra low power design, 3.5uA in deep sleep; Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching); Good impendence matching and long communication distance. Onboard solar energy management system, can directly connect with a 5.5~7V solar panel; Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures; Show more Product Description Summary CubeCell is a new product series made by Heltec team, mainly for LoRa/LoRaWAN node applications. CubeCell series is based on ASR605x (ASR6501, ASR6502), those chips are already integrated with the PSoC 4000 series MCU (ARM Cortex M0+ Core) and SX1262. We have done a lot of migration and development, made it perfectly support Arduino, can run the LoRaWAN protocol stably, can easily connect lithium batteries and solar panels. HTCC-AB02S is a Dev-Board. Already integrated AIR530Z GPS module, friendly designed for developers, easy to verify communication solutions. Main Features Perfect Arduino-Compatible! CE and FCC certification; Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC 4000 series MCU (ARM Cortex M0+ Core) and SX1262; LoRaWAN 1.0.2 support; Ultra low power design, 3.5uA in deep sleep; Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching); Good impendence matching and long communication distance. Onboard solar energy management system, can directly connect with a 5.5~7V solar panel; Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures; Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing; Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information Ultra low power design, 21uA in deep sleep; Use Air530 GPS module, GPS / Beidou Dual-mode position system support; Specifications Master Chip ASR6502 (48 MHz ARM Cortex M0+ MCU) LoRa Chipset SX1262 Frequency 470~510MHz, 863~928MHz Max. TX Power 22 ± 1dBm Max. Receiving Sensitivity -135dBm Hardware Resource UART x 2; SPI x 2; I2C x 2; SWD x 1; 12-bits ADC input x 3; 8– channel DMA engine; GPIO x 16 Memory 128Kbites FLASH; 16Kbites SRAM Power Consumption Deep Sleep 21uA Operating Temperature -20 ~ 70 ℃ Dimensions 55.9 x 27.9 x 9.5 mm Interface Micro USB x 1; LoRa Antenna interface(IPEX) x 1; 18 x 2.54 pin x 2 Battery 3.7V lithium battery power supply and charging Solar Energy VS pin can be connected to 5.5 ~ 7V solar panel USB to Serial Chip CP2102 Battery 3.7V Lithium（SH1.25 x 2 socket） Display Size 0.96-inch OLED CubeCell GPS-6502 (HTCC-AB02S) Pin Map Packing list The default packing list without selecting any accessories is as follows: CubeCell AB02S GPS-6502 * 1 Glue Rod Antenna * 1 SH1.25×2 Battery Connector * 1 Product information Technical Details Collapse all Other Technical Details Brand Heltec Automation Item model number 863-870MHz Item Weight 1.76 ounces Product Dimensions 2.2 x 1.1 x 0.38 inches Item Dimensions LxWxH 2.2 x 1.1 x 0.38 inches Number of Processors 1 Manufacturer Heltec Automation ASIN B0D2HQM448 Country of Origin China Date First Available April 23, 2024 Additional Information Best Sellers Rank #8,844 in Single Board Computers (Computers & Accessories) Warranty & Support Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is “dead on arrival,” arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test “dead on arrival” returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
