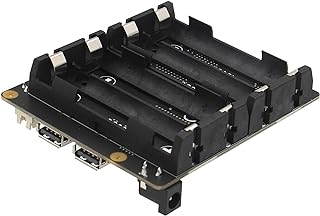

Geekworm X1202 4-Cell 5V UPS Shiled for Raspberry Pi 5| Max 5.1V 5A Output|Wide 6-18V Input|Auto Power On|Safe Shutdown|Power Loss Detection

About this item Compatibility: Pi 5 UPS compatible with Raspberry Pi 5 8GB/4GB; Model: X1202; Matching Case is X1202-C1 Function: X1202 provides max 5.1V 5000mA Power Backup, intelligent and safe power management like auto power on, safe shutdown, full power-off from software, power loss and power adapter failure detection, on-board power button to power on/off How to Power: Power via USB-C port of X1202: 5Vdc 5A via USB Type-C OR Power via DC 5521 power jack of X1202: 6-18Vdc , ≥3A User Manual: Goole Geekworm Wiki search X1202 and refer to user manual for hardware and software guide 4-Cell Battery Supported: Battery length max 65.3mm, diameter max 18.5mm. (NOT include batteries, please prepare yourself) Versatile Design: X1202 is designed to be attached on bottom, enabling easy stacking with other Raspberry Pi accessory boards for enhanced applications Packing List: 1 x X1202 5V UPS Shield, 1 x Screws Pack (Not include Raspberry Pi 5, batteries or power adapter) Product Description FAQ Q: What do to do if I2C address (0x36) is not detected or failed to read AC power state or failed to control charging? A: The X1200/X1201/X1202 UPS connects to the Pi 5 GPIO via pogo pins, If the I2C address (0x36) is not detected or failed to read AC power state or failed to control charging, please ensure to clear the leads of the pins used on the GPIO header from the bottom of the Raspberry Pi PCB and then reinstall it. Please make sure the pogo pin of UPS shield is in close contact with the pad position of Pi 5. Tips about Power Supply The Wide 6-18V Input allows the user to choose the power supply flexibly. The required current is greater than or equal to 2A/3A. The reserved 6-18V XH2.54 connector provide convenient power supply when integrate X1202 with other products. The X1202’s Type-C port simplifies power supply by supporting the 5V 5A Type-C power adapter used by the Raspberry Pi 5. Specifications Power & Charge Input 6-18Vdc via DC5521 Jack or 5Vdc 5A via USB Type-C of X1202 UPS Output 5.1V ±5% Max 5A Battery Charging Current Max 2.3-3.2A Terminal Battery Voltage 4.23V Battery Recharge Threshold 4.1V PCB Size 97.4mm x 85mm Ports & Connectors DC power jack – 5.5×2.1mm; DC6-18V power input connector x1 – XH2.54-2P; USB Type-C socket x1; battery socket x4; 5V Power output connector x2 – XH2.54 2-pin; USB2.0 type-A power output socket x2; External power button connector x1 – XH2.54-2P Notes 1.Do not apply power to your Raspberry Pi 5 via the Type-C USB socket. 2. Do not use battery with built-in protection circuit. Matching Case X1202-C1 (ASIN: B0CRZ4ZXQW) Reliable Power Backup: The X1202 provides a stable 5.1V 5000mA power backup, ensuring uninterrupted operation of your Raspberry Pi 5. Whether you are running resource-intensive applications or powering multiple peripherals, the X1202 delivers reliable and consistent power supply. Enhanced Power Management: One of the standout features of the X1202 is its enhanced power management system. It intelligently monitors the power status of the Raspberry Pi 5 and automatically cuts off power when the Pi is shut down. This helps optimize battery life by entering an ultra-low standby power consumption mode. It ensures efficient operation and maximizes the lifespan of the UPS battery. Seamless Power Switching: Equipped with AC power loss and power adapter failure detection, the X1202 seamlessly switches to backup power in the event of a power outage or power adapter failure. This feature makes your Raspberry Pi 5 remains operational and protected from unexpected power disruptions. Convenient Features: The X1202 offers convenient features such as auto power-on, enabling your Raspberry Pi 5 to automatically boot up when power is restored. It also supports full power-off from software, allowing you to safely shut down your Raspberry Pi 5 without manual intervention. Fast Charging: With fast charging capabilities of up to 3000mA, the X1202 ensures quick recharging of the UPS, making it ready to provide backup power whenever needed. Versatile Design: The X1202 is designed to be attached on bottom and don’t use the 40-pin header, enabling easy stacking with other Raspberry Pi 5 accessory boards. This versatility allows you to expand the functionality of your Raspberry Pi 5 and create enhanced applications tailored to your specific needs. Seamless Data Backup: The X1202 is compatible with our range of storage products, providing seamless integration for safe and reliable data backup. Your valuable data remains protected, even in the event of a power failure. Enhance the reliability and performance of your Raspberry Pi 5B with the X1202 UPS expansion board. Experience peace of mind with its advanced features and robust power backup capabilities. Trust the X1202 to ensure uninterrupted operation and safeguard your valuable data. X1200 X1201 X1203 X-UPS1 X729 X728 Add to Cart Add to Cart Add to Cart Add to Cart Buying Options Add to Cart Customer Reviews 4.5 out of 5 stars 2 3.3 out of 5 stars 3 5.0 out of 5 stars 1 4.5 out of 5 stars 4 2.7 out of 5 stars 2 4.1 out of 5 stars 77 Price $43.00 $43 . 00 $45.00 $45 . 00 $43.00 $43 . 00 $50.00 $50 . 00 — $43.00 $43 . 00 Compatible With Raspberry Pi 5 ONLY Raspberry Pi 5 ONLY Raspberry Pi 5 ONLY Most Single Board Computers (SBC) that uses 12Vdc or 5Vdc Raspberry Pi 5/4B/3B+/3B Raspberry Pi 5/4B/3B+/3B Battery Holder 2-Cell 2-Cell No, without battery holder 4-Cell and Stackable 2-Cell 2-Cell Match Case X1200-C1 X1201-C1 No matching case acrylic plates available No matching case X728-C1 for Raspberry Pi 4&X728 Product information Technical Details Collapse all Summary RAM ‎DDR4 Wireless Type ‎Bluetooth Other Technical Details Brand ‎Geekworm Series ‎X1202 Item model number ‎X1202 Operating System ‎Linux Item Weight ‎3 ounces Product Dimensions ‎3.74 x 3.35 x 0.98 inches Item Dimensions LxWxH ‎3.74 x 3.35 x 0.98 inches Color ‎black Processor Brand ‎Broadcom Number of Processors ‎1 Voltage ‎5 Volts Manufacturer ‎Geekworm ASIN ‎B0CRZ4ZXQW Country of Origin ‎China Date First Available ‎January 10, 2024 Additional Information Customer Reviews 4.2 4.2 out of 5 stars 8 ratings 4.2 out of 5 stars Best Sellers Rank #3,084 in Single Board Computers (Computers & Accessories) Warranty & Support Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is “dead on arrival,” arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test “dead on arrival” returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
