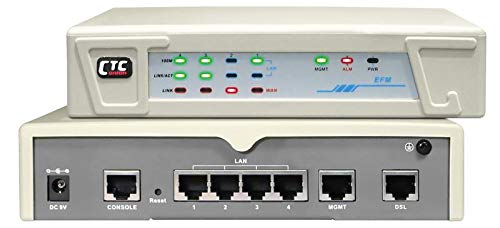

EFM-10 G.shdsl.bis 2-Wire LAN Extender – 5.7Mbps Ethernet Bridge Modem – up to 4.9mi Loop Length on 26 AWG Wires

About this item WAN Interface: RJ45 8 pins, SHDSL.bis ITU-T G.991.2 Annex AF/BG, encoding 16-TCPAM, 32-TCPAM, 2BASE-TL, 64/65 octet encoding, EFM bonding (802.3ah PAF), 5.7Mbps rate per pair of copper line, 135ohms impedance LAN Interface: 4 port 10/100Base-TX switch w/ auto MDI/MDI-X, 802.1d transparent bridging VLAN features: 802.1q and port-based VLAN support, Q-in-Q VLAN support, VLAN Trunk mode Management: web-based GUI, CLI interface for console and telnet access, SNMP v1/v2 agent (RFC 1157/1901/1905), MIB II support (RFC 1213/1493), EFM OAM support (IEEE 802.3ah), software upgrade via web or TFTP Operating distance: up to 8Km on AWG 26 copper wire (max speed 5.7Mbps) Product information Product Dimensions 10 x 3 x 8 inches Manufacturer CTCUnion ASIN B07TJP3RLV Item model number EFM-10 Best Sellers Rank #261,516 in Computers & Accessories (See Top 100 in Computers & Accessories) #643 in Computer Networking Modems Is Discontinued By Manufacturer No Date First Available September 1, 2019 Warranty & Support Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
