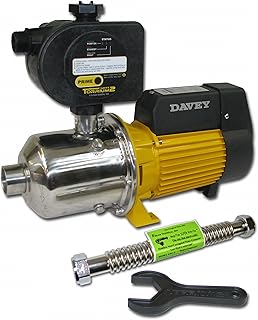

Davey Water Products BT20-30T2-USA Home Pressure Booster Pump with Torrium II Controller

About this item Pressure Boost = 50 psi (30 psi at 20 gpm) Stainless Steel Impellers and Pump Casing Power Surge Protected TEFC Motor Dry-Run Protected Flexible S/S FIP Discharge hose › See more product details Product Description Davey BT Series pressure boosting systems combine robust, compact, stainless steel centrifugal pumps with Davey’s exclusive Torrium2 intelligent controller to supply strong, even pressure boosted water to domestic households and commercial/industrial applications. APPLICATIONS: Ideal for pumping clean, clear water including: Inadequate pressure from municipal water supplies From underground or surface water supplies (BT14-45 and BT20-40 only) Automatic water transfer Applications with interrupted water supplies Domestic and light industrial irrigation Stainless Steel Horizontal Centrifugal Pump & Motor Reliable single stage or multistage impeller designs All stainless steel wet end construction for reliability Able to pump hot water up to 158°F Carbon/Ceramic mechanical seal for reliable operation Higher than normal 120°F ambient temperature rating High operating temperature and high current draw protection Robust TEFC motor constructed from corrosion resistant materials IP55 international protection rating for dust and dirt Permanently split capacitor for reliable starting Motor and pump are designed for frequent starts Torrium 2 Controller Larger water pathway provides superior hydraulic performance Adaptive starting – monitors incoming pressure Quick cut-in for constant flow and even water pressure Extra Draw off Capacity w/ Built In Accumulator Easy status check LED’s Dry run protection with auto restart High Water Temp, Excessive Electrical Current and Power Surge Protection Corrosion & Scale Resistance Vertical/horizontal 360° discharge Power Cable – 6 ft power cord with standard NEMA power plug Choose from five different models with varying performance curves for most any application Hydraulic Performance is the amount of pressure boost the pump will add to your incoming pressure at a specific flow rate. Select the best pump for your application based upon your existing incoming pressure and desired combined system pressure (Usually < 80 psi to meet local building codes.) Model / Voltage / Incoming Pressure Range BT14-30 / 120V / 22-60 psi Incoming Pressure BT14-45 / 120V / 2-40 psi Incoming Pressure BT20-30 / 120V / 10-50 psi Incoming Pressure BT20-40 / 240V / 0-20 psi Incoming Pressure BT30-30 / 240V / 10-50 psi Incoming Pressure Note: Do not exceed a Maximum System Pressure of 100 psi (incoming pressure PLUS pump boost). Product information Technical Details Brand ‎Davey Water Products Color ‎Stainless Steel Material ‎Stainless Steel Style ‎Pressure Product Dimensions ‎20"L x 8"W x 16"H Power Source ‎Ac/dc Item Weight ‎31.65 Pounds Maximum Flow Rate ‎20 Gallons Per Minute Maximum Lifting Height ‎21.6 Feet Voltage ‎120 Volts Global Trade Identification Number ‎00858980004125 Manufacturer ‎Davey Water Products UPC ‎858980004125 Part Number ‎BT20-30T2-USA Item Weight ‎31.6 pounds Item model number ‎BT20-30 Is Discontinued By Manufacturer ‎No Wattage ‎984 watts Item Package Quantity ‎1 Temperature Range ‎34-150 Degrees Fahrenheit Hose Length ‎1 Feet Batteries Included? ‎No Batteries Required? ‎No Warranty Description ‎2 year warranty Additional Information ASIN B00DT3YKQK Customer Reviews 4.3 4.3 out of 5 stars 97 ratings 4.3 out of 5 stars Best Sellers Rank #491,695 in Tools & Home Improvement (See Top 100 in Tools & Home Improvement) #124 in Utility Pumps Date First Available June 21, 2013 Warranty & Support Amazon.com Return Policy:Amazon.com Voluntary 30-Day Return Guarantee: You can return many items you have purchased within 30 days following delivery of the item to you. Our Voluntary 30-Day Return Guarantee does not affect your legal right of withdrawal in any way. You can find out more about the exceptions and conditions here. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
