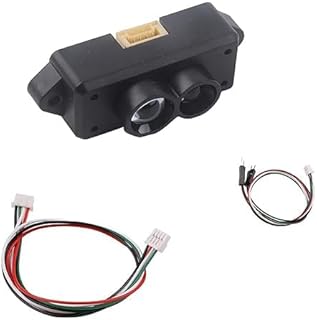

Benewake TFmini-S Lidar Range Finder Sensor Module Single Point Micro Ranging for Pixhawk UART

About this item Main Application Scenario Pedestrian detection Vehicle detection Intelligent barrier gate Altimeter Product Performance Operating Range: 0.1 ~12 m @ 90% Reflectivity Accuracy: ±6 cm @ (0.1-6 m) [Accuracy was calculated based on a standard whiteboard with reflectivity 90% in indoor condition] / ±1% @ (6-12 m) Distance resolution: 1 cm Frame rate: 100 Hz Ambient light immunity: 70 Klux Operating Temperature: 0 ~ 60 °C Optical parameters Light source: VCSEL Central wavelength: 850 nm Photobiological safety: Class1 (EN60825) FOV: 2°2 Electrical parameters Supply voltage: 5 V ±0.1 V Average current: ≤140 mA Power consumption: ≤0.7 W Peak current: 200 mA Communication level: LVTTL (3.3 V) Communication interface: UART/IIC Miscellaneous Housing: PC/ABS Storage temperature: -20 ~ 75 °C Weight: 5 g ±0.3 g Cable length: 10 cm Product Description Product Description TFmini-S is a single-point ranging LiDAR based on TFmini upgrade. The blind zone is shortened to 10cm, the outdoor performance and accuracy of different reflectivity are improved, it can achieve stable, accuracy, sensitive and high frequeney range detection.The module is characterized by the following points: Small size Light weight Low power consumption High frame rate(up to 1000Hz) Operating Range 0.1m~12m@90%Reflectivity Accuracy ±6cm@(0.1-6m), ±1% @ (6m-12m) Distance Resolution 1cm Frame Rate 100Hz Ambient Light Immunity 70Klux Supply Voltage 5V±0.1V Average Current ≤140mA Power Consumption ≤0.7W Peak Current 200mA Communication Level LVTTL(3.3V) Communication Interface UART / I2C/IO Size 42mm * 15mm * 16mm Weight 5g Product Appearance and Structure Low Power Yet High Frame Rate In low power consumption mode, the maximum power consumption can be lower than 100mW, reducing system power consumption and further prolonging LiDAR lifetime. TF-Luna TFmini-S TF Mini-Plus Add to Cart Add to Cart Add to Cart Customer Reviews 5.0 out of 5 stars 1 5.0 out of 5 stars 1 4.7 out of 5 stars 4 Price $24.99 $24 . 99 $39.90 $39 . 90 $47.90 $47 . 90 Range 0.2-8m 0.1-12m 0.1-12m Interface UART, I2C, I/O UART, I2C, I/O UART, I2C, I/O Accuracy ±6cm@(0.2m-3m)3±2%@(3m-8m) ±6cm@(0.1-6m), ±1% @ (6m-12m) ±5cm@(0.1-5m)±1%@(5-12m) Voltage 3.7V-5.2V 5V±0.1V 5V±0.5V
