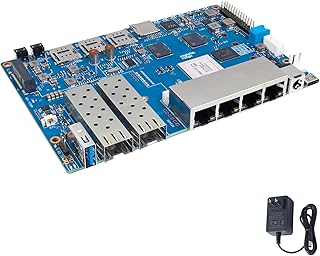

Banana Pi BPI-R4 WiFi 7 Router Development Board, with MediaTek MT7988A Chip, 4GB RAM and 8G eMMC onboard, 2X 10Gbe SFP Slot,4X Gbe Network Port (BPI R4 Basic Kit)

About this item [SOC] Banana Pi BPI-R4 Router board with MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 (1.8GHz) design ,4GB DDR4 RAM,8GB eMMC,128MB SPI-NAND flash onboard.The 36Gbps Wi-Fi 7 access point/router/gateway platform delivers the fastest and most reliable connection experience. [Tips] This product does not include the wifi 7 module.If you need the wifi 7 module, please ask “youyeetoo”. [Network] It have 2x 10Gbe SFP, 4x Gbe network port,with USB3.2 port,M.2 support 4G/5G/NVME SSD.2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card) [OpenWRT] Provide OpenWRT 21.02 wifi 2.4G and 5G working fine.support nand flash ,SD card ,eMMC flash boot. [Get Start] https://docs.banana-pi.org/en/BPI-R4/BananaPi_BPI-R4 Product Description Q: When will the Wi-Fi 7 module be released? A: Currently, a limited number of samples have been sent out for testing, with the official launch expected in July.The estimated price for the Wi-Fi 7 module is $110/pcs System Image OpenWRT Debian 11 Ubuntu 22.04 Development Preparation Tools 8G/above TF card USB-Serial cable Ubuntu System BPI-R4 Introduction Application direction Internet service Router Wifi 7 Wireless Router 4G/5G Wireless Router Wireless Repeater Home security Gateway Home Automation Nas device Network and communication applications Key Features MediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor 4GB DDR4 8GB eMMC flash 128MB SPI-NAND Flash Micro SD card slot 2x 10Gbe SFP slot (option 1x 10Gbe SFP and 1x SOC embedded 2.5Gbe PHY. NOTE: Need to modify hardware) 4x Gbe network port 26 PIN GPIO Header for expanding application POE function customizable (present version not support POE function) Banana Pi R4 Banana Pi R4 Metal Case 10G SFP+ For BPI-R4 Banana Pi R3 Add to Cart Buying Options Buying Options Add to Cart Customer Reviews 3.5 out of 5 stars 2 5.0 out of 5 stars 2 — 4.4 out of 5 stars 14 Price $135.00 $135 . 00 — — $145.00 $145 . 00 SoC MediaTek MT7988A (Filogic 880) MediaTek MT7986(Filogic 830) Power Supply ✓ ✓ SDRAM 4 GB DDR4 2 GB DDR4 Wifi The WiFi functionality requires using a WiFi module. Wifi 6 4×4 2.4G Wifi(MT7975N) +4×4 5G Wifi(MT7975P) OpenWRT Snapshots OpenWrt 23.05.3 Hardware Spec CPU MediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor SDRAM 4 GB DDR4 On board Storage MicroSD (TF) card,8GB eMMC onboard GPIO 26 Pin GPIO,some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S. On board Network 4 Port 10/100/1000Mbps Ethernet SFP 2x10G SFP or 1x10G SFP and 1x 2.5GbE Wifi Wifi6/Wifi 7—(You need to install a Wi-Fi module) mini PCIE 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card) M.2 interface 1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G,1x M.2 KEY-M slot with PCIe3.0 1lane interface for NVME SSD USB 1xUSB 3.2 slot Buttons Reset button,WPS botton, boot switch Leds Power status Led and RJ45 Led DC Power 12V/5.2A or 19V 3.2A Sizes 100.5 x 148mm Weight 250g Product information Package Dimensions 8 x 5 x 2 inches Item Weight 11.2 ounces Manufacturer youyeetoo ASIN B0CP1WDJ8Q Country of Origin China Customer Reviews 3.5 3.5 out of 5 stars 2 ratings 3.5 out of 5 stars Best Sellers Rank #8,009 in Single Board Computers (Computers & Accessories) Date First Available November 27, 2023 Warranty & Support Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
