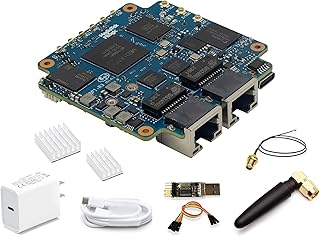

About this item [High Performance SoC] BPI-R3 Mini WiFi 6 Router Board is design with MediaTek MT7986 (Filogic 830) quad-core ARM Cortex A53 chip, onboard 2GB DDR RAM 8GB eMMC storage, 128MB Nand storage, dual band 4×4 Wi-Fi6. [Dual-band WiFi 6] BPI-R3 Mini WiFi 6 Router Board support Wifi 6 2.4G/5G (MT7976C), 6Gbps of dual band 4×4 Wi-Fi6, it can used for Internet service router. [Rich interfaces] BPI-R3 mini router board support 2x 2.5GbE network interface, 1xM.2 Key B interface, 1xM.2 KEY M PCIe interface, 1xUSB interface, 1x NANO SIM, 3-pin Debug UART and U.FL antenna. [Built-in Hardware Acceleration] BPI-R3 mini router board supporting the 6GHz band wireless network devices, such as providing reliable wireless networks for streaming, gaming, AR/VR and other applications. [Wide Application] BPI-R3 mini router board suitable for 2.5GbE firewall, wireless router or wireless repeater, home security gateway, home automation gateway, NAS device,wireless internet device and more. Product Description HardWare Specification of BPI-R3 Mini CPU MediaTek MT7986A(Filogic 830) Quad-core ARM Cortex-A53 SDRAM 2GB DDR4 Storage 8GB eMMC, 128MB SPI Nand Flash Network 2x 2.5GbE Ethernet Wifi Wifi6 2×2 2.4G + 3×3 5G (MT7976C Chip) M.2 Key B 1x M.2 Key B interface M.2 Key M 1x M.2 KEY-M PCIe inerface USB 1x USB 2.0 5x Leds Power ,System, Wifi 2G ,Wifi 5G ,4G Lte ,SSD DC Power 20W/12V,USB TypeC PD Sizes 65 x 65 x10 mm Weight 100g (only board) BPI-R3 Mini Router Board Bundle1 BPI-R3 Mini Router Board Bundle2 BPI-R3 Mini Router Board Bundle3 BPI-R3 Mini Router Board Bundle4 Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews — — 1.0 out of 5 stars 1 3.9 out of 5 stars 6 Price $99.99 $99 . 99 $102.99 $102 . 99 $124.99 $124 . 99 $114.99 $114 . 99 CPU MediaTek MT7986A(Filogic 830) Quad-core ARM Cortex-A53 MediaTek MT7986A(Filogic 830) Quad-core ARM Cortex-A53 MediaTek MT7986A(Filogic 830) Quad-core ARM Cortex-A53 MediaTek MT7986A(Filogic 830) Quad-core ARM Cortex-A53 SDRAM 2GB DDR4 2GB DDR4 2GB DDR4 2GB DDR4 Storage 8GB eMMC, 128MB SPI Nand Flash 8GB eMMC, 128MB SPI Nand Flash 8GB eMMC, 128MB SPI Nand Flash 8GB eMMC, 128MB SPI Nand Flash Network 2x 2.5GbE Ethernet 2x 2.5GbE Ethernet 2x 2.5GbE Ethernet 2x 2.5GbE Ethernet Wifi Wifi6 2×2 2.4G + 3×3 5G(MT7976C) Wifi6 2×2 2.4G + 3×3 5G(MT7976C) Wifi6 2×2 2.4G + 3×3 5G(MT7976C) Wifi6 2×2 2.4G + 3×3 5G(MT7976C) M.2 Key 1x M.2 Key B, 1x M.2 KEY-M PCIe 1x M.2 Key B, 1x M.2 KEY-M PCIe 1x M.2 Key B, 1x M.2 KEY-M PCIe 1x M.2 Key B, 1x M.2 KEY-M PCIe Sizes 65x65x10 mm 65x65x10 mm 65x65x10 mm 65x65x10 mm Support Wifi 2G ,Wifi 5G ,4G Lte ,NVME SSD Perhaps, the main highlight of the R3 Mini is the NanoSIM socket addition, which supports both 4G LTE and 5G modules. This makes the board suitable for a wide range of IoT and industrial applications. This upgrade is most likely done via the M.2 B-Key socket. Product information Technical Details Collapse all Summary RAM DDR4 Wireless Type 5 GHz Radio Frequency, 802.11ax, 802.11ac Number of USB 2.0 Ports 1 Other Technical Details Brand WayPonDEV Series BPI-R3 Mini Wi-Fi 6 Wireless Dual-Band Router Board Item model number BPI-R3 Mini WiFi 6 Router Board Operating System Ubuntu, OpenWRT, Debian, Linux Item Weight 5.1 ounces Product Dimensions 2.56 x 2.56 x 0.39 inches Item Dimensions LxWxH 2.56 x 2.56 x 0.39 inches Color 2GB DDR4 RAM 8GB eMMC Processor Brand MediaTek Number of Processors 4 Manufacturer WayPonDEV ASIN B0CHY6MHXM Date First Available September 13, 2023 Additional Information Best Sellers Rank #12,334 in Single Board Computers (Computers & Accessories) Warranty & Support Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is “dead on arrival,” arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test “dead on arrival” returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
