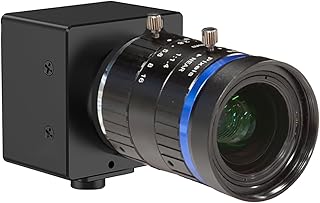

Arducam 20MP USB Camera Module, 120fps High-Speed Camera, USB 3.0 Webcam with 60°(D) 16mm C-Mount Lens and Metal Case, Compatible with Windows and Linux OS

About this item Superior Imaging: This UVC webcam Utilizes a 1-inch IMX283 CMOS sensor, achieving sharpness at a max still resolution of 5472×3648 Flexible Frame Rates: With this high-speed UVC camera module, you can program your desired frame rates, even reaching 120fps at 720p Proprietary on-board ISP advances image enhancement: de-Bayer, gamma, BLC, AE, AWB, CCM, RGB2YUV Telephoto Precision: This 20MP USB Webcam Captures brilliance with a 16mm C-mount lens offering a 60° DFOV Plug and Play: This USB 3.0 camera is encased in an all-inclusive metal housing, its compact design makes it plug-and-play ready for on-the-go creativity Notes: Tripod is not included in the package Product Description Arducam IMX283 USB 3.0 camera equipped with a 1-inch IMX283 CMOS. It achieves astonishing image clarity at a max resolution of 5472×3648. This camera offers programmable frame rates, providing the flexibility to reach up to 120fps at 720p resolution for dynamic video capture. The camera features an onboard ISP and center-weighted exposure. This intelligent combination ensures uncompromised output in uncompressed YUY2 format. The camera’s 16mm C-mount lens, boasting a 60° FOV, guarantees telephoto excellence, capturing scenes with precision and detail. Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows and Linux OSs, no additional drivers are needed, simplifying the setup process. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity. USB 3.0 Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity. Metal Case Comes with a metal case, which protect it perfectly and makes this USB camera more delicate. Telephoto Precision Capture brilliance with a 16mm C-mount lens offering a 60° DFOV. Frame Rate USB 3.0: 1280×720@120fps, 1920×1080@60fps, 2720×1536@40fps, 3840×2160@20fps, 5472×3648@9fps USB 2.0: 1280×720@10fps 1 x IMX283 USB3.0 Camera Module with Metal Case 1 x 1m USB A to Type-C Cable Highlights SENSOR: IMX283 Still Resolution: 20 Megapixels Sensor Active Area: 5496(H)×3672(V) Focus Type: Manual Focus FOV: 60°(D)×49°(H)×38°(V) Lens Mount: C-Mount F.NO: F1.4-16 E.F.L: 16mm Default Focus Range: 5m-∞ IR Sensitivity: Integral IR-cut Filter, visible light only Image Sensor Color Filter Type Color Shutter Type Rolling Optical Size 1″ Output Format YUY2 Pixel Size 2.4 µm x 2.4 µm IR Sensitivity Integral IR-cut Filter, visible light only Plug and play Encased in an all-inclusive metal housing, its compact design makes it plug-and-play ready for on-the-go creativity. Other Specifications Interface USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts Connector Type-C reversible interface connector UVC Compliant No additional drivers required Operating Voltage 5 V +/- 5% Operating Temp. 32°F-158°F (0°C to 70°C) Power Requirements Max: 1.38W , Min: 0.75W Camera Board Size 34×34 mm Supported OS Windows, Linux Recommend Sample Application PotPlayer for Windows, qv4l2 for Linux UVC Controls Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Exposure (Manual/Auto) Applications Machine Vision Video Surveillance 3D Scanning and Metrology Live Streaming Video Conferencing Notes Tripod is not included in the package. We offer Quick Start Guide on Windows/Linux. Product information Package Dimensions 3 x 2.7 x 2.7 inches Item Weight 4.8 ounces ASIN B0CW1PTSCB Best Sellers Rank #4,181 in Single Board Computers (Computers & Accessories) Date First Available February 20, 2024 Manufacturer Arducam Country of Origin China Warranty & Support Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
