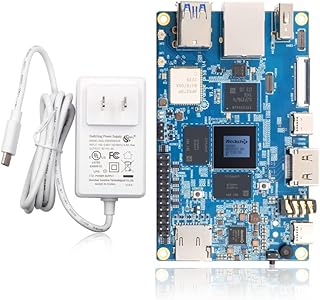

About this item [High Performance]: Orange Pi 5B development board uses Rockchip RK3588S 8-core (4-core A76 and 4-core A55) 64-bit processor. Main frequency up to 2.4GHz, integrated ARM Mali-G610 GPU, embedded high-performance 3D/2D image acceleration module, built-in NPU with 6 Tops computing power, with 4GB/8GB/16GB/32GB (LPDDR4/4x) and 32GB/64GB/128GB/ eMMC, with dual-band Wi-Fi6, BT5.0, and up to 8K display processing capability. [What’s Difference From Pi 5]: Orange Pi 5B adds wireless communication function Wi-Fi 6 and Bluetooth 5.0 module to Orange Pi 5. Wi-Fi supports 2T2R 802.11 ax/ac/a/b/g/n, using both 2.4GHz and 5GHz bands with MIMO standard. Wi-Fi using 2 antennas, 1 of which is shared with Bluetooth, using the PCIe 2.1 interface; BT5.0 uses UART/ PCM interface. Meanwhile, 32GB/64GB/128GB/256GB eMMC memory can be added to the Orange Pi 5. [Wide Range Of Application Scenarions] : Orange Pi 5B singal board computer provides abundant interfaces, including HDMI output, GPIO interface, USB Type-C post, Gigabit LAN port, 2*USB 2.0, 1*USB 3.0, etc. It can be widely used in tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries. [Support Open Source]: Orange Pi 5B supports Orangepi OS, the official operating system developed by Orange Pi, as well as Android 12, Debian11, Ubuntu 22.04 and Ubuntu 20.04. Product Description Orange Pi 5B Rockchip RK3588S 8-core 64-bit processor Main frequency up to 2.4GHz 4GB/8GB/16GB/32GB LPDDR4/4x RAM 32GB/64GB/128GB/256GB eMMC Support 8K video codec Wi-Fi using both 2.4GHz and 5GHz bands,supports 2T2R 802.11 ax/ac/a/b/g/n. Bluetooth supports 5.0 Orange Pi 5B Hardware Specification CPU Rockchip RK3588S 8-Core 64-Bit (4xCortex-A76 and 4xCortex-A55) GPU Arm Mali-G610 MP4 / Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2 / 3D graphics engine and 2D graphics engine NPU Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation RAM 4GB/8GB/16GB/32GB（LPDDR4/4x） Memory 32GB/64GB/128GB/256GB eMMC / MicroSD (TF) Card Slot USB 1*USB 3.1 / 2*USB 2.0 / 1*USB 3.1 Type-C Video Output HDMI2.1, up to 8K@60Hz / DP1.4 (DisplayPort), maximum output resolution up to 8K@30Hz / 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz Camera MIPI CSI 4Lane / 2 * MIPI D-PHY RX 4Lane Audio CODEC: ES8388 / 3.5mm headphone jack audio input/output / Input: Onboard MIC / HDMI 2.1 eARC Wi-Fi 2.4G/5G dual-band Wi-Fi6 Bluetooth Bluetooth 5.0 Expansion Port For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces Debugging 3 Pin debug serial port (UART) Supported OS Orangepi OS（Droid）, Orangepi OS（Arch）,Debian11, Ubuntu22.04, Ubuntu20.04, Android12 Dimension 62mm * 100mm Weight 52g Wi-Fi 6+ Bluetooth 5.0 Support Built-in 2.4G/5G dual-band Wi-Fi6 and Bluetooth 5.0, supporting BLE, stronger and more stable signal, more convenient and faster network transmission. Up to 256GB eMMC built-in Built-in 32GB/64GB/128GB/256GB eMMC for more stable and reliable long-time operation. Gigabit Ethernet On-board 1000Mbps Ethernet for stronger and more stable network connection and higher transmission speed. Rich interfaces Gathering all kinds of popular interfaces such as MIPI D-PHY, MIPI CSI, USB3.0, USB2.0, Type-C, HDMI2.1, Gigabit Ethernet, etc. Rockchip RK3588S A new generation AIoT chip Using 8nm LP process, it is faster and consumes less power, bringing superior performance to various AI application scenarios. Wide Range of Application Scenarios It can be widely applied to tablets, edge computing, artificial intel-ligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AloT various industries! Customer Reviews Price SoC Rockchip RK3588S Rockchip RK3588S Rockchip RK3588 Rockchip RK3588S Rockchip RK3588 RAM 4GB/8GB/16GB 4GB/8GB/16GB 4GB/8GB/16GB/32GB 4GB/8GB/16GB 4GB/8GB/16GB Memory Onboard 16MB SPI Flash 32GB/64GB/128GB/256GB Onboard 16MB SPI Flash Onboard 16MB SPI Flash Onboard 16MB SPI Flash WiFi NO Wi-Fi 6 NO Wi-Fi 5 Wi-Fi 6E Bluetooth NO Bluetooth 5.3 NO Bluetooth 5.0 Bluetooth 5.3 eMMC Module Support NO NO YES YES YES WiFi Card Support YES NO YES NO NO Ethernet 1*1Gbps Ethernet 1*1Gbps Ethernet 2*2.5Gbps Ethernet 1*1Gbps Ethernet(Support PoE) 1*2.5Gbps Ethernet Dimension 62mm*100mm 62mm*100mm 100mm*75mm 89mm*56mm 89mm*57mm Weight 46g 52g 86.5g 62g 62g Product information Technical Details Collapse all Summary Processor 2.4 GHz RAM LPDDR4X Wireless Type 802.11a/b/g/n Other Technical Details Brand Orange Pi Series Orange Pi 5B Item model number Orange Pi 5B Operating System Ubuntu, Debian, Linux, Android 12 Item Weight 12.6 ounces Package Dimensions 7.6 x 3.94 x 2.68 inches Color Pi 5B 16G256G+Type-C Power Supply Processor Brand Rockchip Number of Processors 8 Manufacturer shenzhenshixiaotudoukejiyouxiangongsi ASIN B0BZ44YKSW Date First Available March 20, 2023 Additional Information Customer Reviews 4.0 4.0 out of 5 stars 24 ratings 4.0 out of 5 stars Best Sellers Rank #6,736 in Single Board Computers (Computers & Accessories) Warranty & Support Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is “dead on arrival,” arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test “dead on arrival” returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
