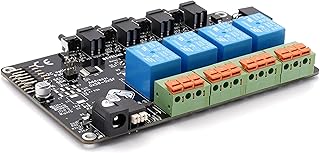

4 Channel Relay 4 Manual Test Buttons 5V Relay 4 CH for Raspberry Pi and Other Single Board Computers and Microcontrollers Like Arduino, ESP8266 ESP32 and More

Product Description BEVRLink 4 Channel Relay with 4 manual test buttons 5V The BEVRLink 4 Channel Relay with 4 manual test buttons 5V is a versatile and reliable relay board designed for use with the BEVRLink system or directly with different single-board computers including but not limited to Raspberry Pi, ROCK, ESP32 and other microcontrollers. With the 4 pcs manual test buttons, you can easily test or operate your system. The Relay has more functions and features compared to cheaper relays and has a high grade of reliability. The product comes with a QR code on the packaging that you can scan to access tutorials and examples to get started with Python, ESPHOME, Arduino Managers, 3D models, and other instructions. Relay features Compatible with BEVRLink Manager Boards The manager board is explicitly made for some of the most common SBCs such as Raspberry Pi, ESP and more. On top of this board, you put your SBC and then easily connect it to the relay with the headers. All will then be correctly wired and addressed. Compatible with Most Single Board Computers and Microcontrollers For example: Arduino Raspberry Pi Rock Odroid Asus Control the relay in many ways We provide instructions to control the relay with: Home Assistant ESP Home Arduino Python BEVRLink web control Power Supply Compatibility 5V/4A, plug size ID 2.5mm OD 5.5mm (not included) Relay Channels 4 Manual Test Buttons 4 Communication SPDT-NO, NC Connectors Spring clamp terminal block Mounting Hole Size Diameter 3,3mm I2C Address 0x20-0x27, user selectable Optional Pull-up I2C 4.7K Compatible Microcontrollers Raspberry Pi, Arduino and most other Single Board Computers and Microcontrollers Maximum load current AC 10A/250V AC, 10A/125V AC Maximum load current DC 10A/30V DC, 10A/28V DC Wiring examples available for the most common SBCs and Microcontrollers Scan the QR code on the product packing to find all documentation. If you are not using the BEVRLink Manager boards you can also connect directly to the really with jumper cables. We are providing examples of how exactly to connect for the most common boards.: Raspberry Pi 4 B, Arduino Uno, Arduino Mega, Arduino Leanardo, ESP 32, ESP 8266, Raspberry Pi Pico and Beagleboard black. The BEVRLink System An example of what a connected system might look like The system is modular and many different types of BEVRLink relays can be connected in long lines. Other compatible Accessories (NOT INCLUDED) Cases and Din Rail Clips For optimal installation, utilize BEVRLink cases. Their steel construction ensures that they can be securely interconnected. The cases come with LED Pipes for external indication. Note: Din Rail Clips are exclusively compatible with these cases. Extension Cables & Power Supplies Connections between manager boards and relays, or even between two relays. It’s specifically designed to accommodate space-constrained setups, enabling you to create more versatile installations. Experience the freedom to arrange relays beyond the confines of a single line. Unlike setups, where relays are connected in a linear sequence, our extension cable empowers you to break free from these limitations. Manager boards (SBC/Microcontroller adapter boards) The BEVRLink Manager HAT has the following main purpose: Quick connect and all pins are automatically connected right between the microcontroller and the Relay module. All pins will be correctly addressed. The BEVRLink module provides power to the Manager board and the single-board computer, no extra cables are needed for the single-board computer. Product information Technical Details Collapse all Other Technical Details Brand ‎BEVRLink Item Weight ‎5 ounces Package Dimensions ‎9.45 x 3.98 x 1.57 inches Number of Processors ‎4 Manufacturer ‎BEVRLink ASIN ‎B0CHS6GCKF Date First Available ‎October 3, 2023 Additional Information Best Sellers Rank #16,583 in Single Board Computers (Computers & Accessories) Warranty & Support Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is “dead on arrival,” arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test “dead on arrival” returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
