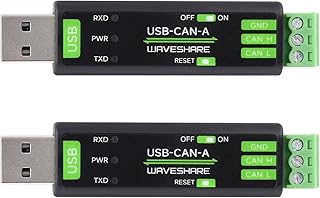

2PCS Waveshare USB to CAN Adapter Model A, STM32 Chip Solution, Multiple Working Modes, Multi-System Compatible

About this item 2PCS Version, Provide online user manual, please check the manual carefully before using! Supports CAN2.0A (standard frame) and CAN2.0B (extended frame). CAN baud rate is configurable in the range of 5Kbps-1Mbps. Supports 4 working modes: normal mode, loopback mode, silent mode, silent loopback mode. Supports multiple CAN data sending modes: single frame, multiple frames, manually, regularly and cyclic sending Supports multiple CAN data receiving modes: can be configured to only receive data from a certain ID, or specify ID to automatically answer the configured data. Data can be saved as TXT or Excel. Supports CAN bus detection for status checking. Sending/receiving CAN data with time scale, allows sequentially displaying Baud rate of USB virtual COM port is configurable in the range of 9600 ~ 2000000bps (2000000bps by default). Supports setting working parameters by configuration software or serial command, can be saved after power off. Adopts STM32 chip solution, stable and reliable communication Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit. Comes with master computer software for Windows system, easy to use. Easy secondary development, just need to modify the sending and receiving commands Product Description Product information Package Dimensions 3.94 x 2.36 x 1.97 inches Item Weight 3.87 ounces Manufacturer Waveshare ASIN B0CPSJGGG5 Item model number 2PCS USB-CAN-A Customer Reviews 4.3 4.3 out of 5 stars 4 ratings 4.3 out of 5 stars Best Sellers Rank #6,425 in Single Board Computers (Computers & Accessories) Date First Available December 8, 2023 Warranty & Support Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
