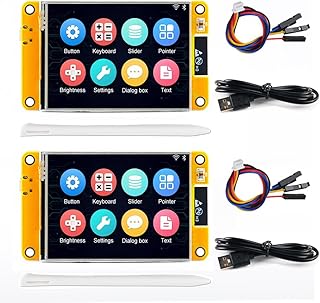

2 Pack ESP32-2432S028R Smart Display 2.8 inch 240X320 TFT with Resistive Touchscreen WiFi+BLE Dual Core ILI9341 Driver ESP32 Development Board for Arduino IoT

About this item Powerful IoT Development Tool: The ESP32-2432S032 development board is designed specifically for Internet of Things applications, featuring a controllable display that is suitable for remote control, environmental data collection, and parameter settings High-Performance Processor: It uses a low-power dual-core 32-bit CPU with a main frequency of up to 240MHz and computing power of up to 600 DMIPS, along with 520KB of built-in SRAM, supporting multiple interfaces (UART/SPI/I2C/PWM/ADC/DAC). Multimedia Support: The board supports OV2640 and OV7670 cameras, includes a 32MB built-in flash, and allows for WiFi image uploads and TF card support, making data storage and transmission easy. Flexible Network Configuration: It supports STA/AP/STA+AP working modes and features Smart Config/AirKiss one-click network configuration for simplified connection processes, facilitating quick deployment. Various Operating Modes and Low Power Design: With multiple sleep modes, it achieves a low power consumption of just 6mA in deep sleep, making it ideal for long-term IoT projects, while also supporting WPA/WPA2 security protocols to ensure data safety. Product Description Description ESP32-2432S032 development board, which gives full play to the development of the Internet of Things, is a real IOT development tool with a control-lable display screen. ESP32 Touchscreen can be used for APP remotecontrol, remote environmental data collection, remote data fusion, remote Parameter settings and other loT development applications. Package includes: 2 x ESP32 2.8inch TFT Touch Screen Display Module 2 x USB cable 2 x Touch pen 2 x 4P terminal cable Specification of ESP32 Touchscreen 2.8inch TFT LCD Display Driver Chip ILI9341 Working voltage 4.75-5.25V SPI Flash 32Mbit (default) RAM 520 KB Wi-Fi 802.11b/g/n/e/i Blue-tooth 4.2BR/EDR and BLE standard Support interface UART/SPI/I2C/PWM/ADC/DAC and other interfaces Support TF card, maximum support 4G Support OV2640 and OV7670 cameras, built-in flash Support Multiple sleep modes Support STA/AP/STA+AP working mode Support Smart Config/AirKiss one-click network configuration Support Secondary development Spectrum range 2400 ~2483.5MHz Antenna Onboard PCB antenna, gain 2dBi Image output format JPEG (only OV2640 support), BMP, GRAYSCALE Receiving sensitivity Receiving sensitivity CCK, 1Mbps: -90dBm CCK, 11Mbps: -85dBm 6Mbps(1/2BPSK): -88dBm 54Mbps (3/464-QAM): -70dBm MCS7 (65Mbps, 72.2Mbps): -67dBm Transmit power 802.11b: 17±2dBm (@11Mbps) 802.11g: 14±2dBm (@54Mbps) 802.11n: 13±2dBm (@MCS7) Stemedu 3.5 inch ESP32 Capacitive Touch Screen 3.5″ ESP32-3248S035C Yellow Di… ESP32 Touchscreen 2.8inch TFT LCD Display ESP-WROOM-32 ILI9341 Resistive Touc… ESP32 2.8inch Resistive Touch Module ESP-WROOM-32 TFT LCD Touchscreen Display… 8MB Flash V3 915MHz LoRa ESP32 OLED Board V3 Type-C SX1262 + 5DBi LoRa Antenn… Stemedu 3PCS LM2596 DC to DC Buck Converter 4-40V to 1.25-37V Adjustable Volt… 915MHZ ESP32 Lora V3 WiFi+BLE Development Board 0.96inch OLED Display+915MHz … Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews — 4.2 out of 5 stars 19 — — 4.1 out of 5 stars 41 — Price $27.90 $27 . 90 $21.90 $21 . 90 $37.99 $37 . 99 $59.99 $59 . 99 $9.98 $9 . 98 $63.99 $63 . 99 Interface 3.5 inch ESP32 Capacitive Touch Screen 3.5″ ESP32-3248S035C Yellow Display TFT LCD Display Module BT+WiFi Development Board ST7796 ESP32-WROOM-32 480×320 for Arduino IDE 2.8 inch ESP32-2432S028R Smart Display 240X320 TFT with Resistive Touchscreen WiFi+BLE Dual Core ILI9341 Driver ESP32 Development Board for Arduino IoT ESP32 2.8inch Resistive Touch Module ESP-WROOM-32 TFT LCD Touchscreen Display + RC522 RFID Sensor Module Kit + 240PCS Jumper Wire Kits 8MB Flash V3 915MHz LoRa ESP32 OLED Board V3 Type-C SX1262 + 5DBi LoRa Antenna+18650 Battery Holder Case with Wire Leads 3PCS LM2596 DC to DC Buck Converter 4-40V to 1.25-37V Adjustable Voltage Regulator Step-Down Module with LED Voltmeter Display 3A 915MHZ ESP32 Lora V3 WiFi+BLE Development Board 0.96inch OLED Display+915MHz LoRa Antenna 5dBi Gain Omni SMA Male + IPEX Cable+18650 Battery Holder Case Product information Technical Details Collapse all Summary Wireless Type ‎Bluetooth, 802.11bgn Other Technical Details Brand ‎Stemedu Series ‎ST5815X2 Item Weight ‎2.89 ounces Product Dimensions ‎3.55 x 2.36 x 0.79 inches Item Dimensions LxWxH ‎3.55 x 2.36 x 0.79 inches Manufacturer ‎Stemedu ASIN ‎B0DHJXYJY9 Country of Origin ‎USA Date First Available ‎September 20, 2024 Additional Information Best Sellers Rank #2,894 in Single Board Computers (Computers & Accessories) Warranty & Support Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is “dead on arrival,” arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test “dead on arrival” returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
