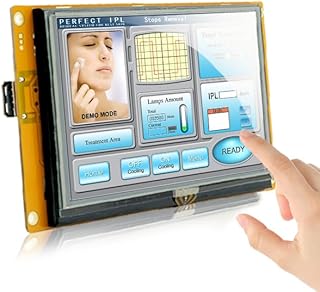

About this item Easy to Program with Comprehensive Compatibility: Our 10.1-inch SCBRHMI TFT LCD screen comes with user-friendly GUI software, making it a breeze to program for anyone, from beginners to seasoned engineers. This screen supports the creation of intuitive touch interfaces by allowing the addition of various image file formats (png/jpg/bmp/svg/gif) as backgrounds and lets users define functions by components. Perfectly suited for a wide range of Arduino displays, including the Arduino Uno, and effortlessly integrating with ESP8266 LCD and ESP32 LCD projects, our control panel dramatically streamlines project development, reducing both time and costs. Versatile with Powerful Upgrades: Powered by a 1 GHz Cortex A8 CPU and equipped with 128MB Flash memory, our latest 10.1-inch resistive touch LCD screen is designed for advanced HMI projects and can be controlled by any MCU. Featuring RS232/TTL UART and serial USB interfaces for extensive control options and supported by a 4.5-6V operating voltage range, this panel is an exceptional choice for equipment control. It’s compatible with an array of platforms, including Arduino, STM32, ESP8266, ESP32 touch screen display, Raspberry Pi touch screen, R3, and beyond, offering vast potential for your innovative projects. Clear, Detailed, High-Resolution HD: Upgrade your projects with our 10.1-inch Smart HMI display module, which boasts a 1024×600 high resolution for crystal-clear visuals on a larger screen. The 4-wire resistive touch screen, combined with a rich 262K (18-bit) color depth and a 16:9 display format, enhances the user experience with vibrant colors and wide viewing angles (85°/85°/85°/85°). Features like adjustable backlight display brightness (400 cd/m²), TTF Font, and contrast (500:1) ensure optimal visibility and readability, ideal for a range of applications from Arduino color LCD projects to sophisticated HMI interfaces. Ultimate Resistive Touch Screen for Industry: Engineered for versatility, the SCBRHMI 10.1-inch Intelligent LCD serial display module STWC101LT-01 excels in a wide array of industrial and commercial applications, from medical and beauty to engineering, industrial control, electric power, civil electronics, automation, traffic, GPS, new energy, and IoT. Its high-quality build and dependable performance, backed by essential functions and a backlight display, make it the go-to solution for projects that require durable and efficient touch screen solutions. Generous 3-Year Guarantee: At SCBRHMI, we build our products to last and excel in their performance. Should anything go wrong, simply return the product, and we will replace it no charge. Our displays undergo rigorous CE/RoHS/FCC/ISO9001 International Certification and 24-hour Aging Testing. We also provide professional technical support 24/7, along with access to our popular user help group, ensuring you have the support you need, whenever you need it. Product Description New Launch intelligent C-Series 3.5 inch-10.1 inch TFT LCD Display Module SCBRHMI products has been conceived as TFT monitor & Touch controller. It includes processor, control program, driver, flash memory, RS232/ TTL /USB, touchscreen, power supply etc，so it is a whole display system based on the powerful & easy operating system, which can be controlled by Any MCU. (Very suitable for your Arduino and Raspberry Pi projects.) They can be used to perform all basic functions, such as text display, image display, curve display as well as touch function, Video & Audio function etc. It has GUI design software to offer an easy way to create an intuitive and superb touch user interface even for beginners, the User Interface can be more abundant and various. And the 128M flash memory can store your data, configuration files, image file, font file, video file and audio file etc. Ultra Compatible with Multiple Interfaces -Fully compatible with RS232/TTL UART Interface & USB port. -Medical grade electromagnetic interference -You can also design your new project file for Intelligent tft lcd screen on Windows system PC or MacOS PC We Provide All Accessories to Link the Screen Your purchase includes -1 x Resistance Touch Control Panel (3.5-15 Inch Available), -1 x double 8-pin connect cable, -1 x 8-pin Socket, -1 x type A USB cable, -1 x converter USB⇌RS232/TTL. All products’ technical information can be found in the included USB disk. Included GUI Design Software Makes Programming Fast & Easy -Our HMI TFT LCD module is a whole display system that comes with no-cost GUI design software(STONE Designer). -This offers an easy way to create an intuitive, superb touch user interface even for beginners. -This will reduce 90% of your development time and cost. It makes designing a GUI a piece of cake. Only 3 steps to use our TFT-LCD Module: 1. Build a GUI project by STONE designer GUI editor with png/jpg/bmp/svg/gif image files. 2. Connect with customer’s MCU through RS232,TTL directly. Plug and play. 3. Write a simple program for MCU to control the TFT-LCD Module via Command Set. (JSON code to TFT-LCD Module and HEX Code to Customer’s MCU ). That’s all. This product is equipped with RS232 and TTL interfaces, designed for seamless integration into applications requiring these connection types. Please verify system compatibility before purchase. Important Notice: Important: This model does not support RS485 interfaces. Ensure your application requirements align before proceeding with the purchase. STWI043WT-01 STWI050WT-01 STWI080WT-01 STWI101WT-01 Add to Cart Add to Cart Buying Options Add to Cart Customer Reviews 4.0 out of 5 stars 2 4.6 out of 5 stars 15 5.0 out of 5 stars 1 4.4 out of 5 stars 2 Price $76.00 $76 . 00 $88.99 $88 . 99 — $158.00 $158 . 00 Size 4.3 inch 5 inch 8 inch 10.1 inch Series Industry Series Industry Series Industry Series Industry Series Resolution 480*272 800*480 800*600 1024*600 CPU Cortex A8/1G Hz Cortex A8/1G Hz Cortex A8/1G Hz Cortex A8/1G Hz Flash Memory 256M 256M 256M 256M Brightness cd/m2 500 350 300 400 Interface RS232/RS422/RS485/TTL RS232/RS422/RS485/TTL RS232/RS422/RS485/TTL RS232/RS422/RS485/TTL Voltage DC 5-28V DC 5-28V DC 5-28V DC 5-28V Work Temperature -30℃ to +80℃ -30℃ to +80℃ -30℃ to +80℃ -30℃ to +80℃ Product information Technical Details Collapse all Summary Processor 1E+3 1_2GHz_Cortex_A8 Wireless Type 802.11b Other Technical Details Brand SCBRHMI Item Weight 2.82 pounds Package Dimensions 11.93 x 9.8 x 3.15 inches Processor Brand ARM Number of Processors 1 Manufacturer SCBRHMI ASIN B0CZP3SXWV Country of Origin China Date First Available April 2, 2024 Additional Information Customer Reviews 5.0 5.0 out of 5 stars 3 ratings 5.0 out of 5 stars Best Sellers Rank #12,183 in Single Board Computers (Computers & Accessories) Warranty & Support Amazon.com Return Policy:You may return any new computer purchased from Amazon.com that is “dead on arrival,” arrives in damaged condition, or is still in unopened boxes, for a full refund within 30 days of purchase. Amazon.com reserves the right to test “dead on arrival” returns and impose a customer fee equal to 15 percent of the product sales price if the customer misrepresents the condition of the product. Any returned computer that is damaged through customer misuse, is missing parts, or is in unsellable condition due to customer tampering will result in the customer being charged a higher restocking fee based on the condition of the product. Amazon.com will not accept returns of any desktop or notebook computer more than 30 days after you receive the shipment. New, used, and refurbished products purchased from Marketplace vendors are subject to the returns policy of the individual vendor. Product Warranty: For warranty information about this product, please click here Feedback Would you like to tell us about a lower price?
